Description

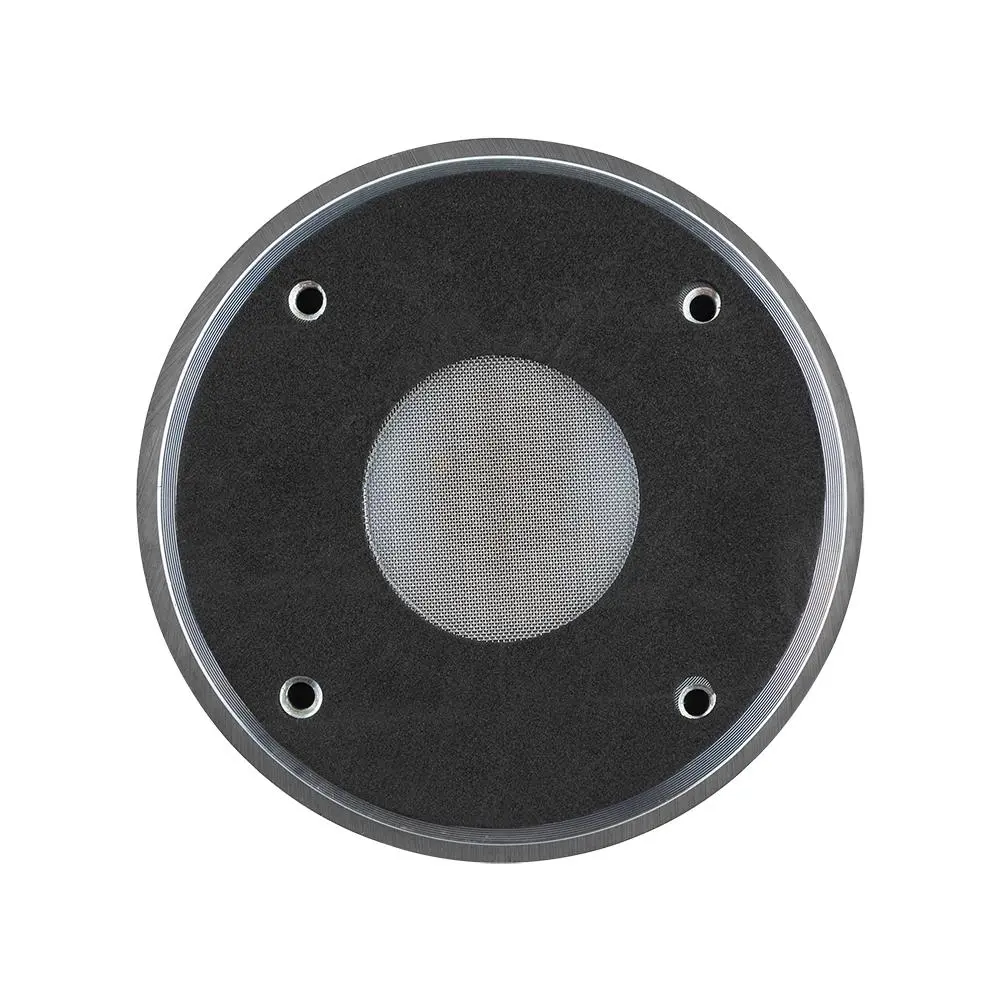

DS18 PRO-DPL1 2″ Throat Bolt On Compression Driver 2″ Throat Titanium VC 640 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.
This driver comes with a massive 2 inch titanium voice coil that takes 160 AES and 640 Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 160 AES watts and 640 peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths
Technical Details
PRO-DPL1 Product Manual
| SPECIFICATIONS | |
| Throat Diameter | 2″ / 50.8 mm |
| Installation Type | Bolt on |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 160W |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| Sensitivity (1w/1m) | 109dB |
| Frequency Response | 630Hz-20KHz |
| Recommended Hi Pass Crossover | 900 Hz |
| MOTOR | |
| Voice Coil Diameter | 2.03″ / 51.5mm |
| VC Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weigh | 35 Oz |
| Body Material | Plastic Cover |
| MEASUREMENTS | |
| Overall Diameter | 5.27″ / 134mm |
| Overall Depth | 2.4″ / 61mm |
| Bolt Pattern – Type | 4″ / 102mm – M6 |
