Description

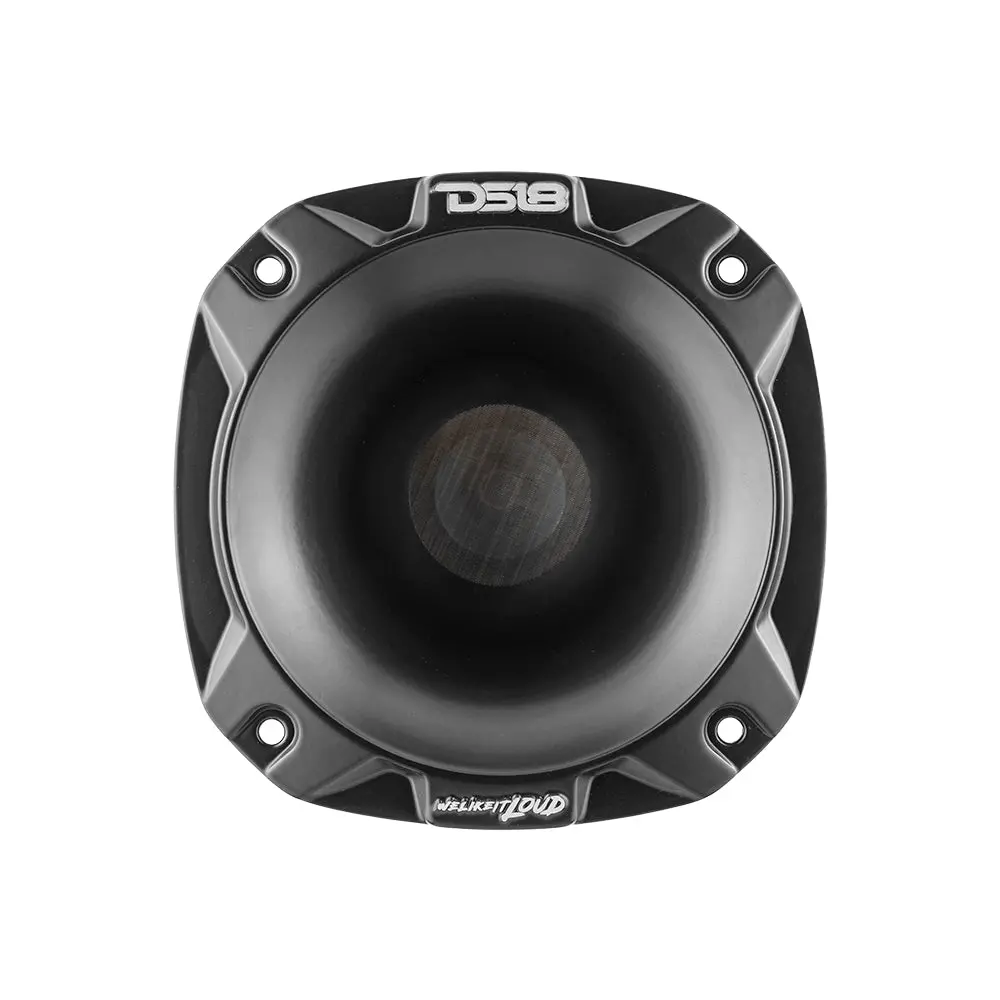

DS18 PRO-DKN1XS 2″ Throat Bolt On Neodymium Driver with Spacer, 2″ Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22″ Throat
The DKN1S includes the DS18 DKN1XS neodymium driver plus our newly redesigned shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency and the included spacer amplifies the DB sensitivity. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone’s attention to your audio!
Highlights
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum “Shorty” throat with brushed DS18 logos for an amazing look and great fitment.
- DKN1 Driver with an AES rating of 170 watts and Peak of 680w for super loud and vibrant highs with a Neodymium 8 ohms voice coil.
- 5.2 inch mounting depth and 5.5 inches total mounting depth so you don’t need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
Download PRO-DKN1XS Product Manual
| Throat Diameter | 2″/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Peak Power Handling | 680W |
| Program Power Handling | 340W |
| AES Power Handling | 170W |
| Sensitivity (1w/1m) | 118 dB |
| Frequency Response | 630Hz – 18KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor: | |
| Voice Coil Diameter | 2″/51mm |
| Voice Coil Former Materia | Kapton |
| Winding Materia | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet size | 4 mm Thick x 134 mm Diameter |
| Measurements: | |
| Overall Diameter | 7″/180 mm |
| Overall Depth | 5.5″/141.8 mm |
| Bolt Pattern/Type | 5.5 mm hole – 6.3″/161 mm Diameter |
| Mounting Depth | 5.2″/132.8mm |
| Mounting Hole Diameter | 5.7″/145mm |
