Description
| Lens & Housing | |
|---|---|
| Lens Color | Clear |
| Lens Material | Hard-coated Polycarbonate |
| Housing Color | Gloss Black |
| Housing Material | Powder-coated Die-Cast Aluminum |

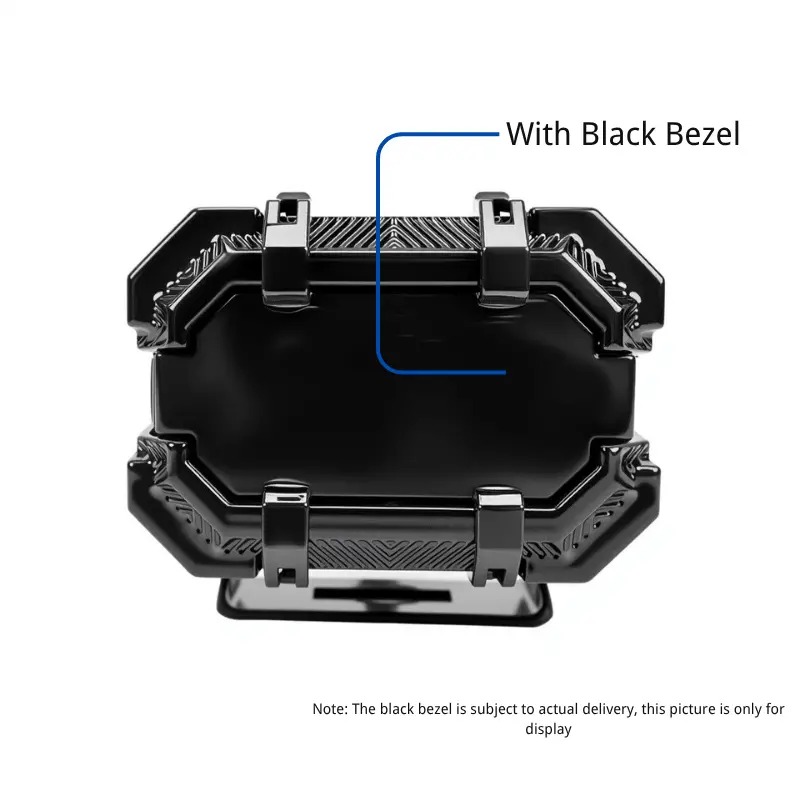

| Bezel Material | Powder-coated Die-Cast Aluminum |
| Lighting | |

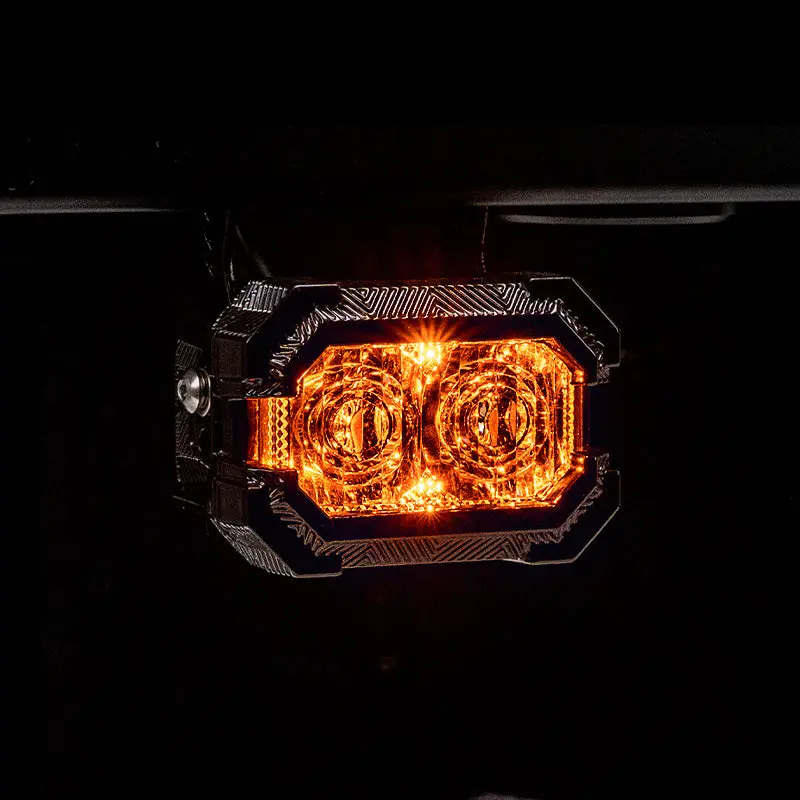

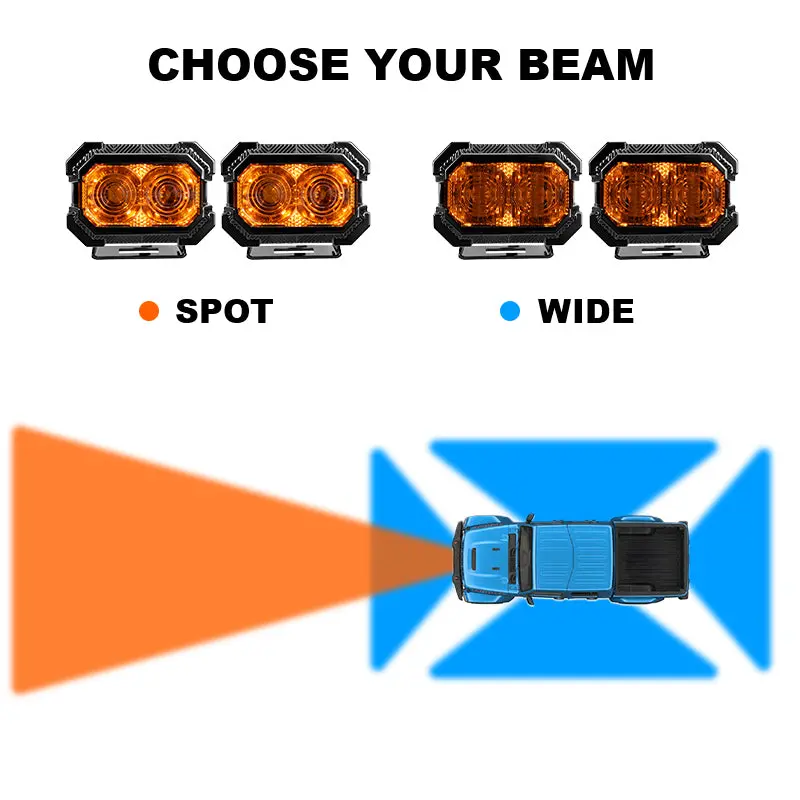

| Modes | Spot Beam or Wide Beam + Amber Backlight |
| Technology | LED |
| Projection Type | Forward Projection |
| Wattage | Spot Beam: 35W (2.69 A(13V)/ Wide Beam: 40W(3.07 A(13V) |
| Voltage | 12V / 24V |
| Beam Angle | Spot: 134° / Wide: 137° |
| Lighting Distance | Spot: 1 lux @ 339 yd / Wide: 1 lux @ 154 yd |

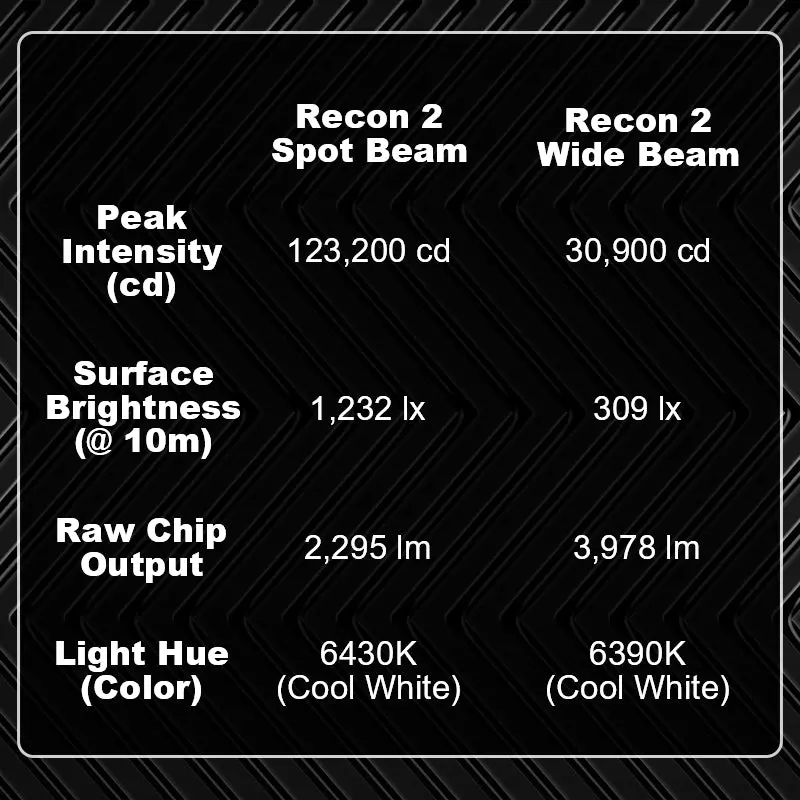

| 10m Lux | Spot Beam: 1232 lx / Wide Beam: 309 lx |
| Center Intensity | Spot Beam: 123,200 cd / Wide Beam: 30,900 cd |
| Lumen Output | Spot Beam: 2295 lm / Wide Beam: 3978 lm |
| Color Temperature | Spot: 6430K / Wide: 6390K |
| Light Sources | |
| Main LEDs | Spot: Luminus SFT-25R-WES-F Wide: Luminus SFT-160FA-W-3570 |
| Main LED Quantity | 2 LEDs |
| Backlight LEDs | 2835 Chips, Amber, 4 LEDs, 1660K |
| Electrical | |
| Rated Voltage | 12V / 24V |
| Lifespan | 50,000 hours |
| Application | Universal |
| Mounting & Hardware | |
| Mounting Hardware Included | Yes |
| Hardware Material | Stainless Steel |
| Brackets | 2 × Gloss Black brackets, includes 8 × M5 hex screws, 2 × M8 carriage bolts, and wrench |
| Wiring Harness | |
| Included | Yes |
| Connector | DT Plug with mating connector |
| Material | Silicone Wire |
| Specs | Dual-output harness, 18 AWG main wires, 12V/40A relay, 10A fuse, 16 AWG branch wires, rocker switch with insulated leads |
| Package Contents | |

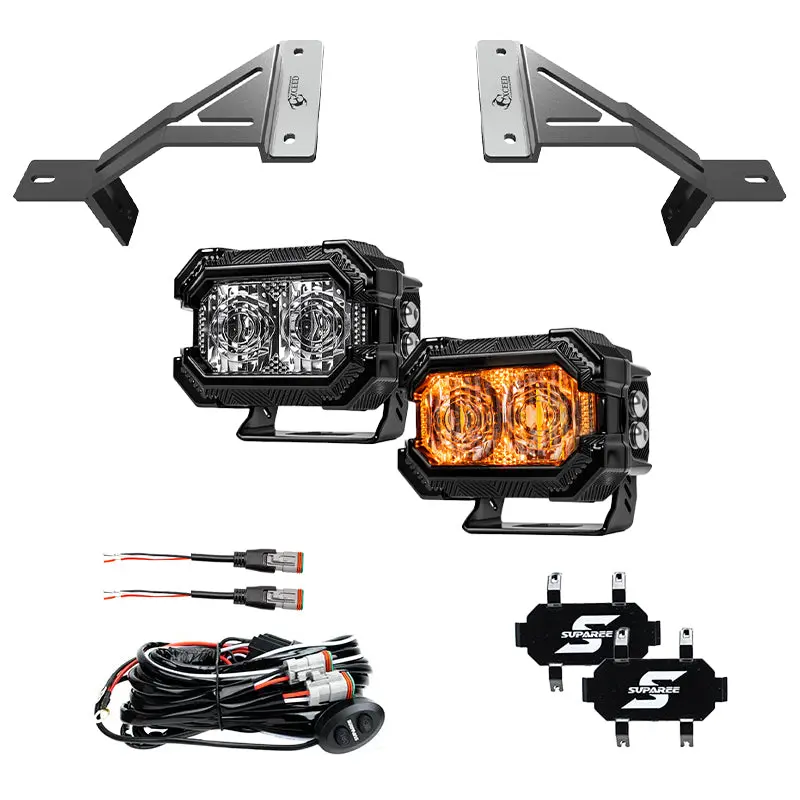

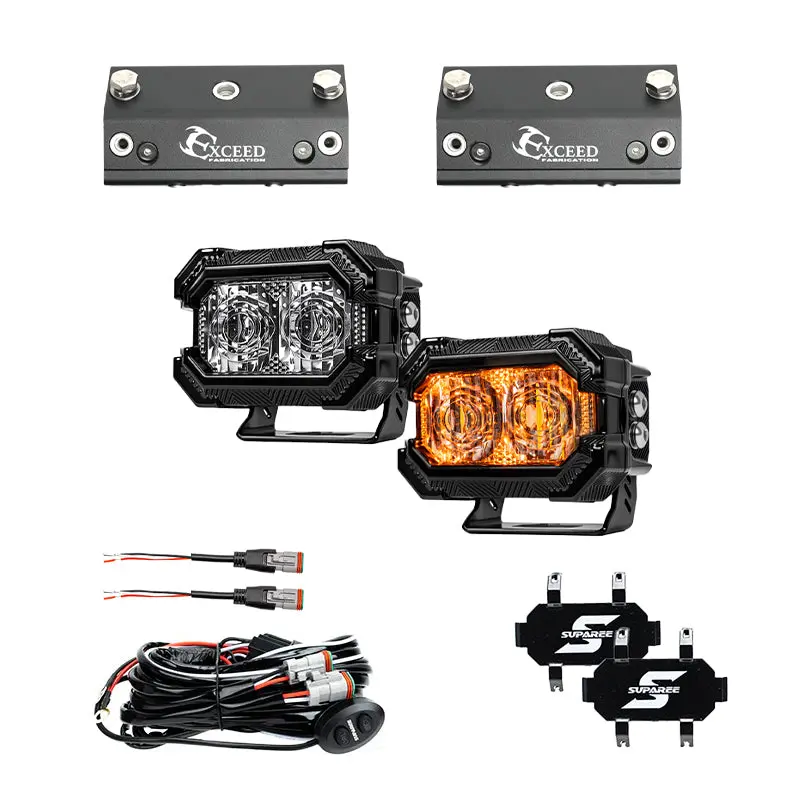

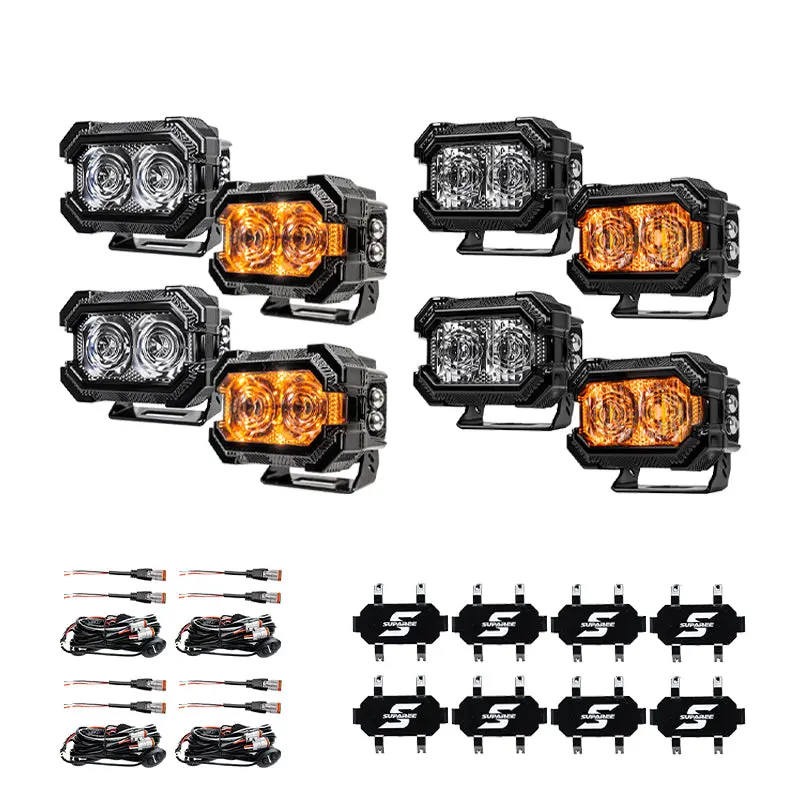

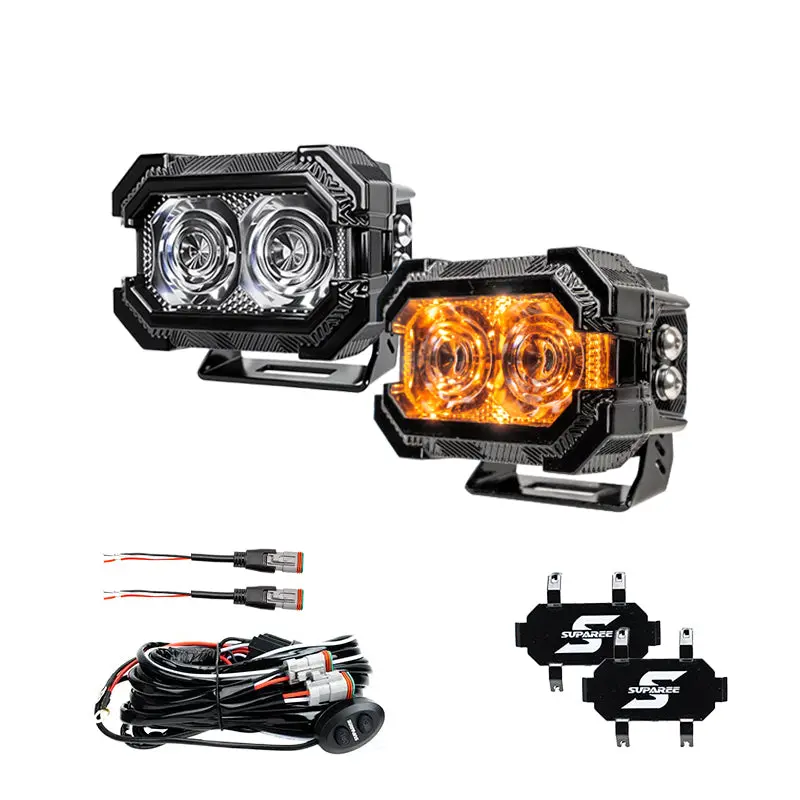

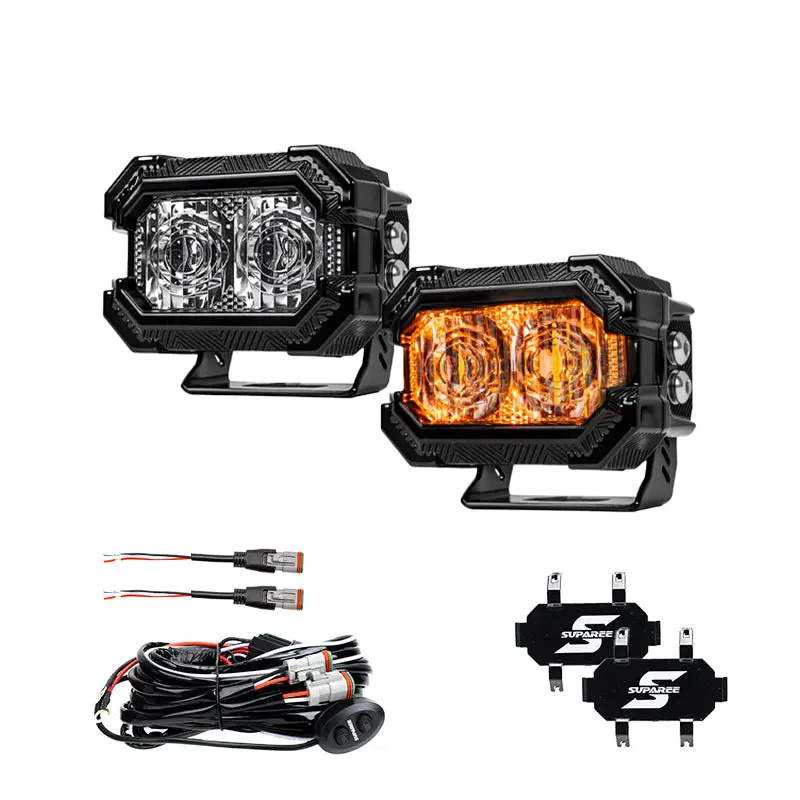

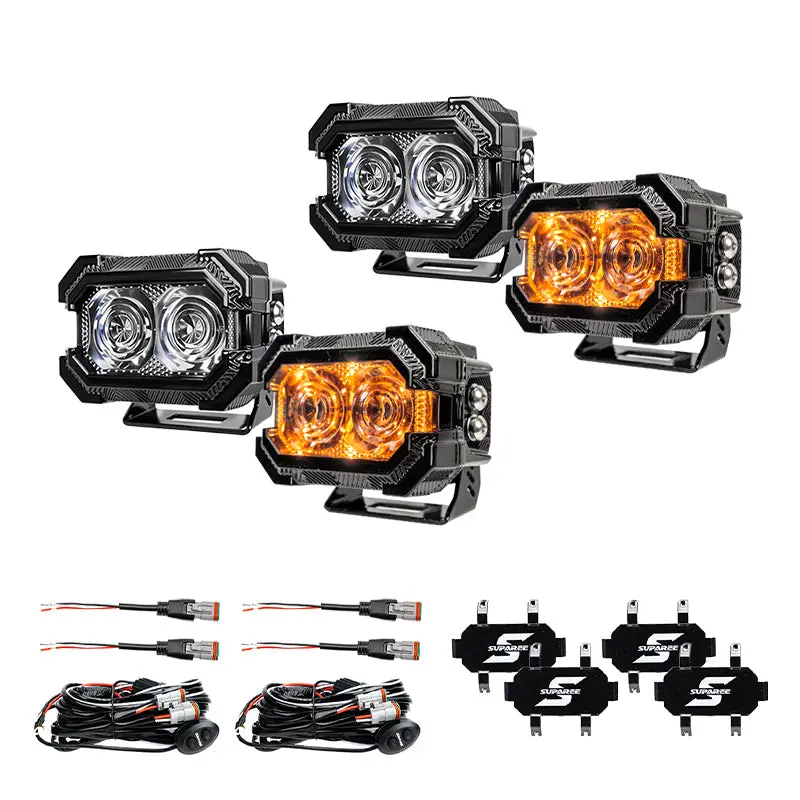

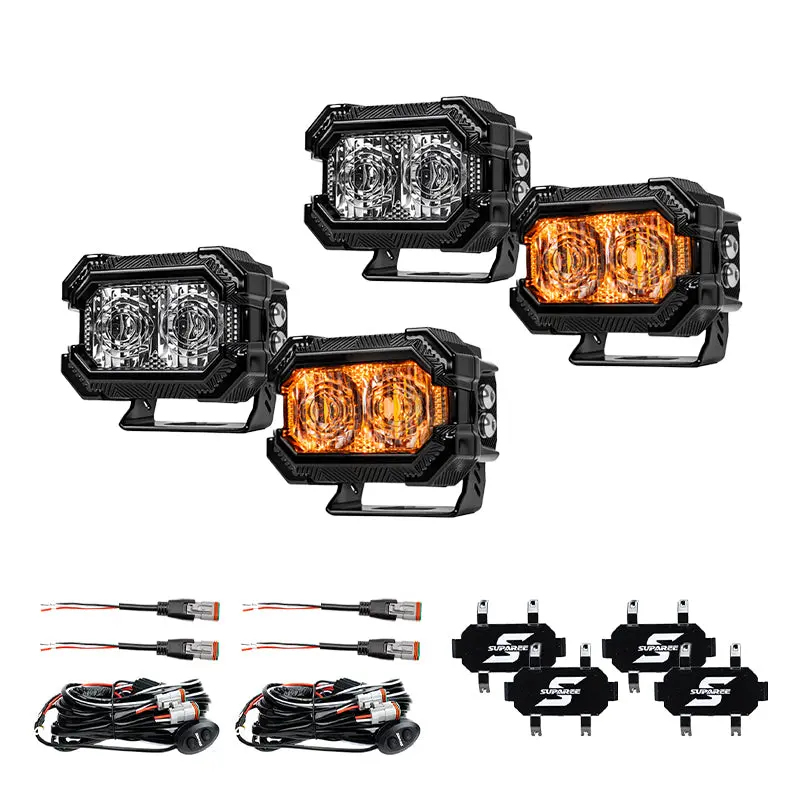

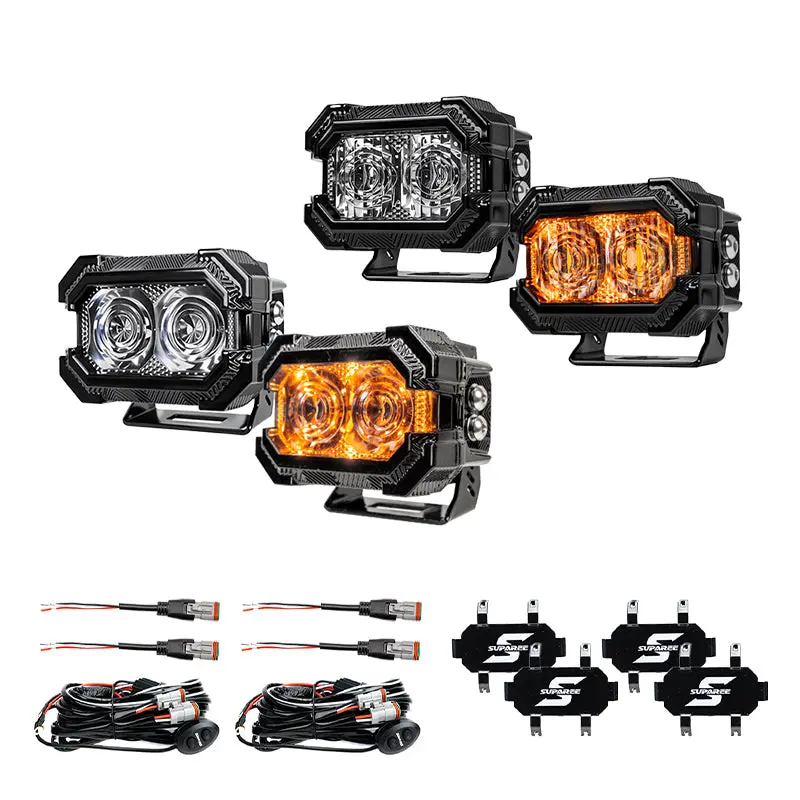

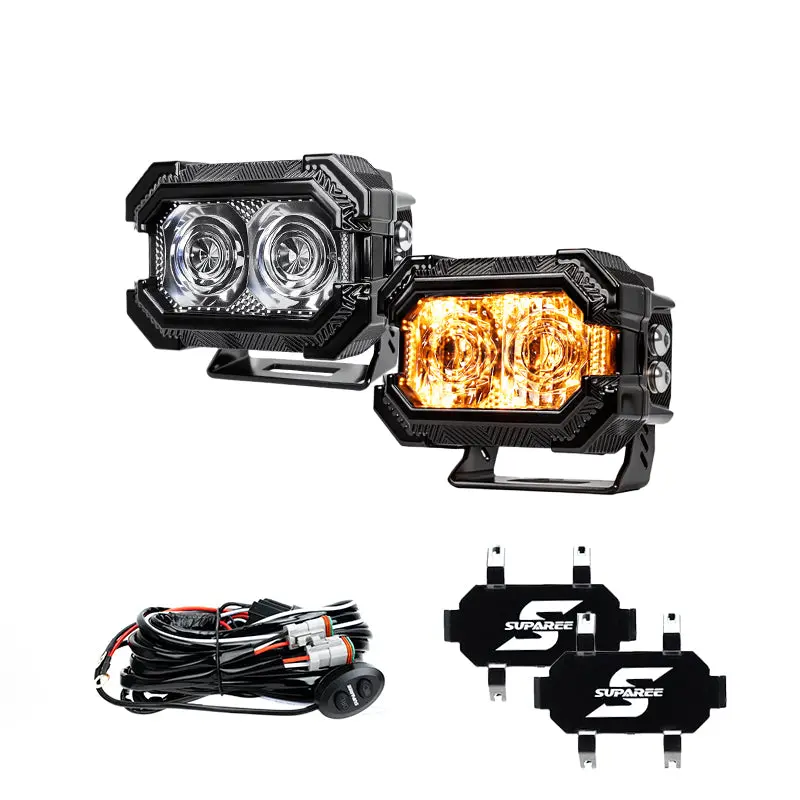

| • 2 × Recon 2 • 2 × Black Covers • 2 × Stainless Steel Brackets + full hardware (M5 screws, M8 carriage bolts, wrench) • 1 × Wiring Harness (3 m) • 1 × User Manual • 2 x Pigtail wire |
|
