Description
| Lens & Housing | |
|---|---|
| Lens Color | Clear |
| Lens Material | Hard-coated Polycarbonate |
| Housing Color | Matte Black |
| Housing Material | Powder-coated Die-Cast Aluminum |
| Bezel Material | Powder-coated Die-Cast Aluminum |
| Lighting | |
| Lighting Modes | High Beam + Dual-Color DRL (White/Amber) |
| Lighting Technology | LED |
| Projection Type | Forward Projection |
| Wattage | 67.2W (5.1A(13V) |
| Rated Voltage | 12V / 24V |
| Lighting Angle | 150° |
| Lighting Distance | 1 lux @ 393 yd |
| 10m Lux | 530 lux |
| Color Temperature (Main Light) | 3700K (with amber cover) / 5500K |
| Luminous Intensity (Center Beam) | 132,144 cd |
| Lumen Output | 4558 lm (each) |
| Main & Side Light | |
| Main Beam Pattern | Spot Beam (Hybrid with cover) |
| Main LED Type | Luminus 3535 12W |
| Main LED Quantity | 4 LEDs |
| Main LED Color Temperature | 5800K |
| Side Beam Pattern | Flood Beam |
| Side LED Type | Luminus 3535 10W |
| Side LED Quantity | 6 LEDs (3 per side) |

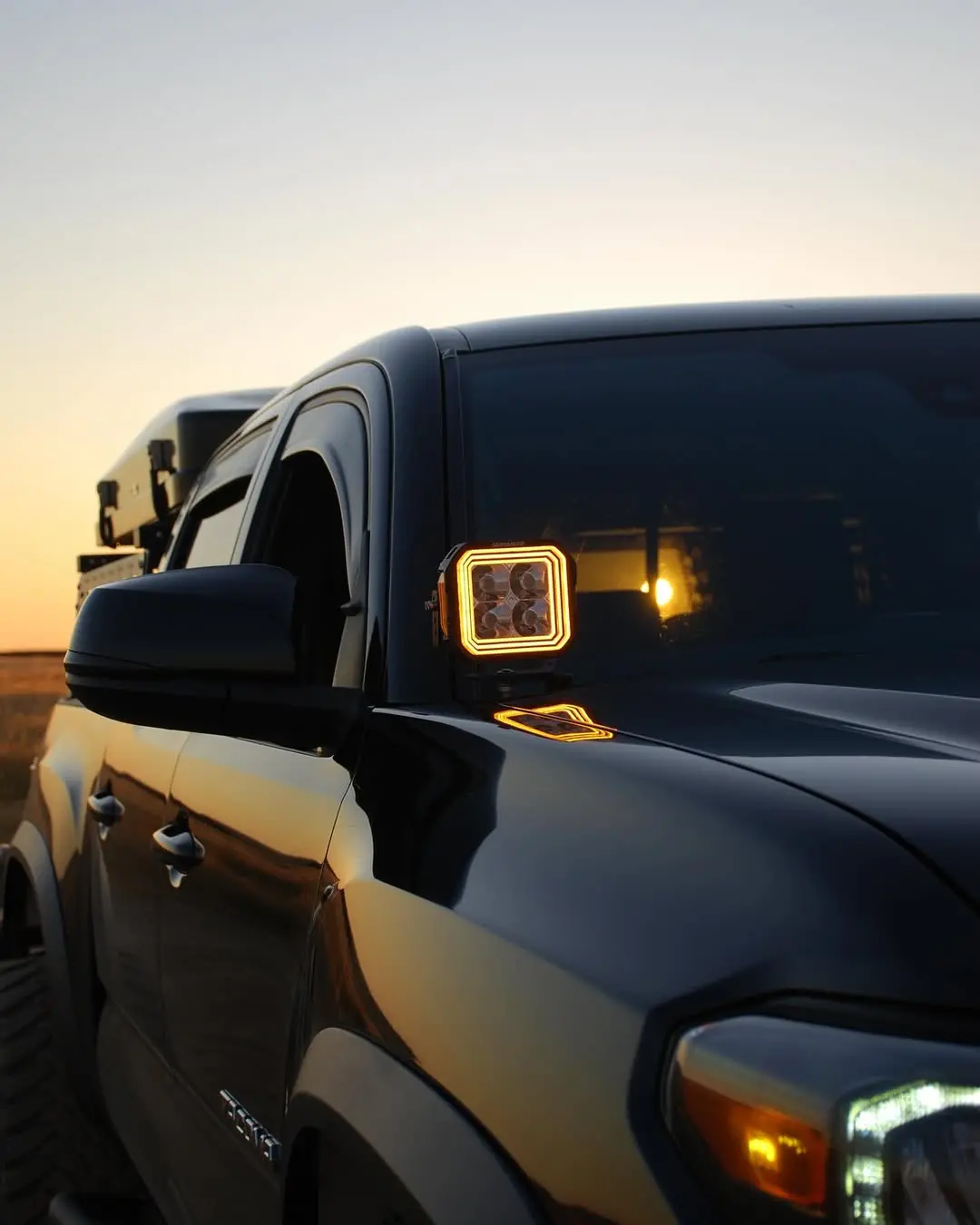

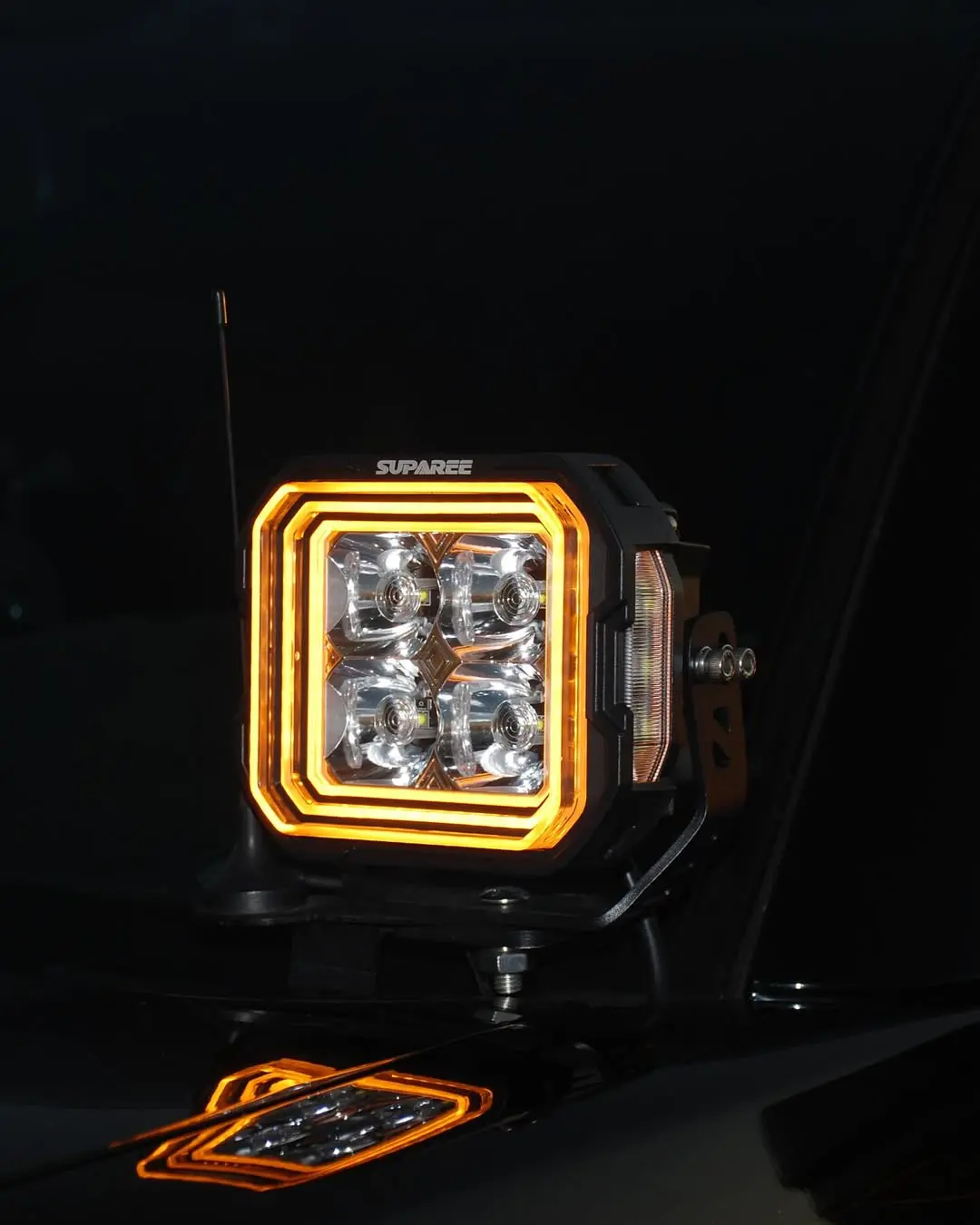

| Daytime Running Light (DRL) | |
| LED Type | 3030 |
| Color | White / Amber |
| Electrical | |
| Rated Voltage | 12V / 24V |
| Average Lifespan | 50,000 hours |
| Application | Universal |
| Mounting & Hardware | |
| Mounting Hardware Included | Yes |
| Hardware Material | Stainless Steel |
| Brackets | 2 × Matte Black brackets, includes 8 × M5 hex screws, 2 × M8 carriage bolts, and wrench |
| Wiring | |
| Included | Yes |
| Connector | DT Plug |

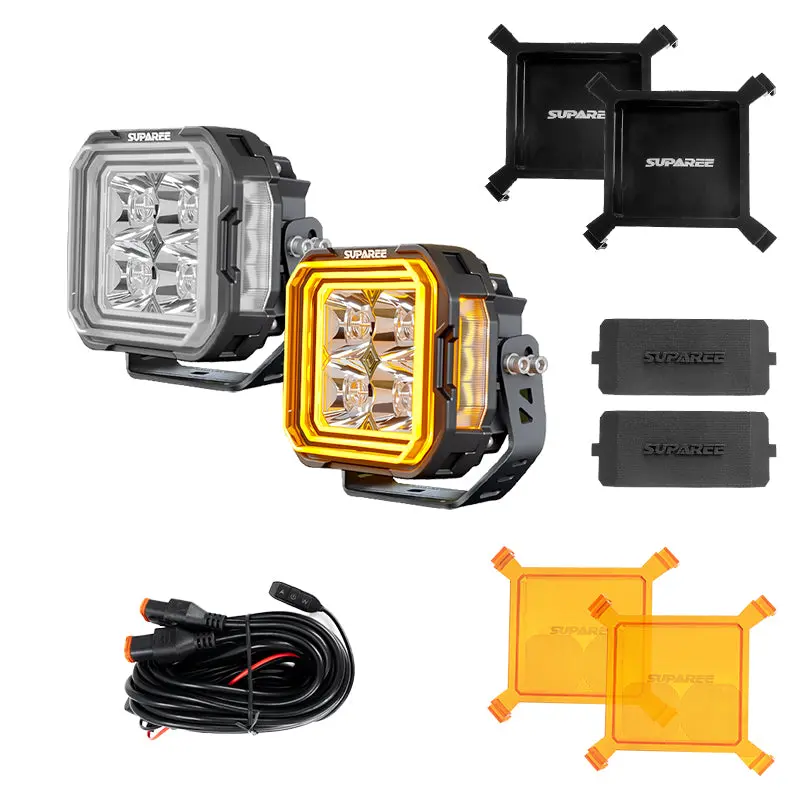

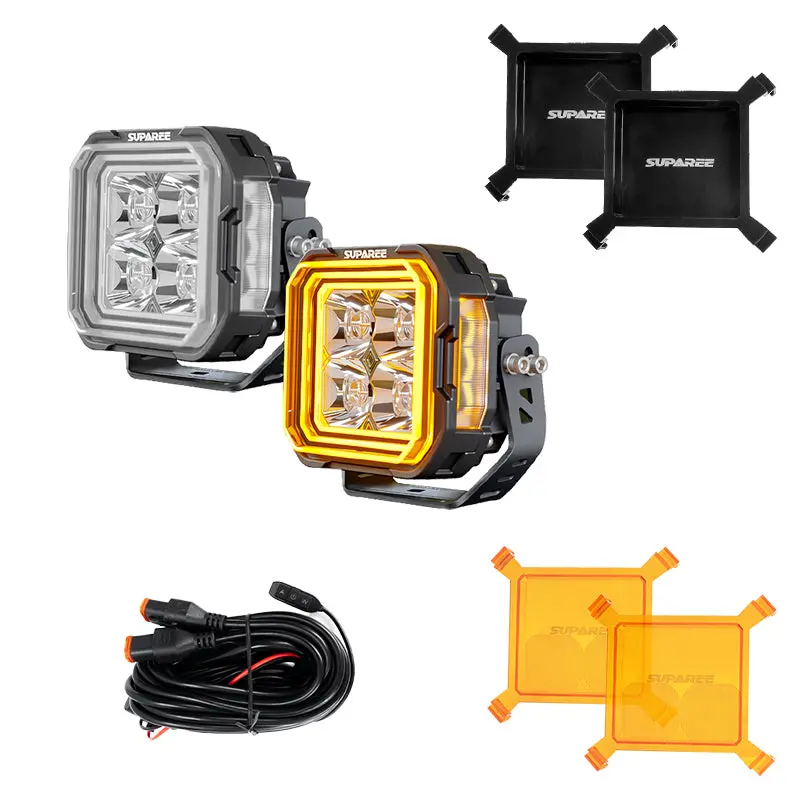

| Package Contents | |

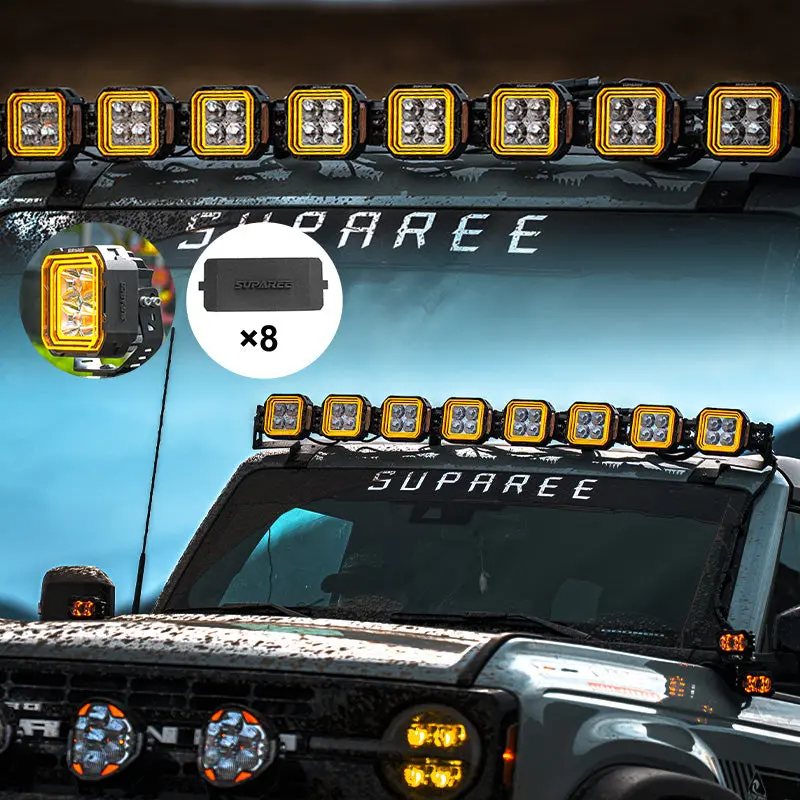

| • 2 × Hyper 5 • 2 × Matte Black Brackets with hardware (M5 screws, M8 carriage bolts, wrench) • 2 × Black Covers • 2 × Amber Covers • 1 × Wiring Harness • 1 × User Manual |
|
