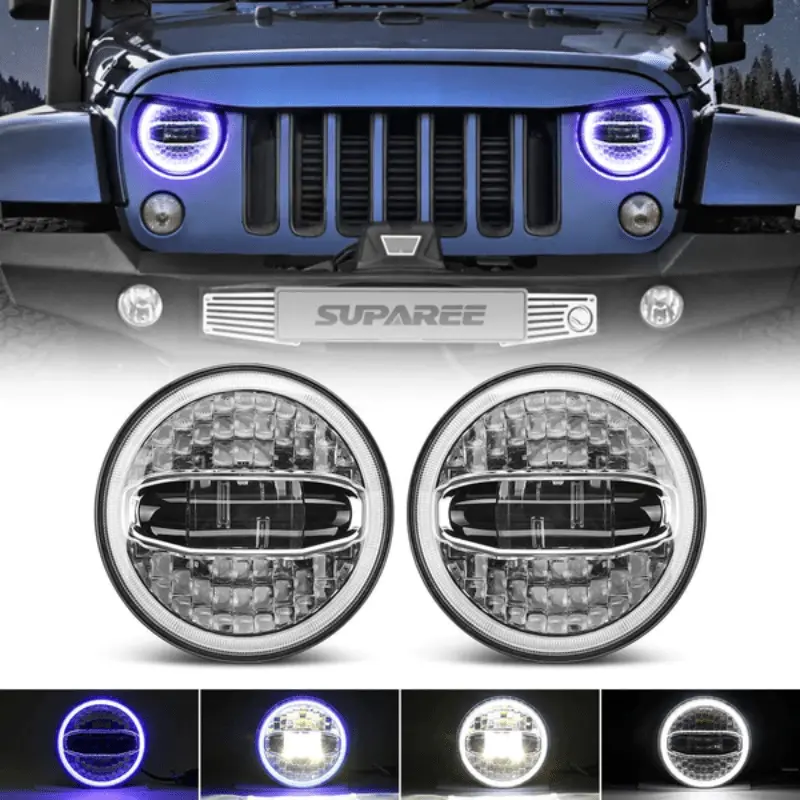

Suparee 7-Inch RGB LED Headlight Assembly with Integrated Turn Signals — Compatible with 1997–2024 Jeep Wrangler (TJ, JK, JL, and Unlimited Models)

Description

Features:

• Upgraded Design LED Halo Headlights: 3d RGB LED lens three-dimensional sag design, enhanced stereoscopic. Multi-function, including adjusting brightness, music mode, modifying patterns, timing function, flashing function, automatic control.
• Easy to install, plug & play, H4 to H13 adapter included.Come with installation instruction.
• App for both IOS and Android systems, for light color control.
• Flashing color-changing LED headlight bulb replaces original halogen and HID headlight.
• IP68 Waterproof features durable die-cast housing with a corrosion-resistant coating, as well as a tough PC lens. Each light is epoxy sealed to prevent moisture.
• DOT, SAE, E-Mark approved, legal on the road & One Year Warranty

Specs:

• High Power: 80W/set, 40W/pc
• Operating Voltage: DC12~24V
• Lumens: High beam@9000LMs, Low beam@6000LMs
• Color Temperature: 6000K White & RGB Halo ring
• Plug and Play: H4/H13 plug
• Lifespan: Over 50000 hours
• DOT, SAE,E-Mark approved

Installation Steps:

• In order to make the headlight work, and to achieve the headlight high/low beam switch, please connect H4 connect to the car, you may need a converter to match if your car plug is h13 ( The package comes with an h13 to h4 converter).
• The red wire is connected to the car ACC and the black wire is connected to GNC.
• If Blueline 1 is connected to the left headlight, please connect Blueline 2 to the left turn signal line of the car. If White line 1 is connected to the left headlight, please connect White line 2 to the left turn signal line of the car.

APP Tips：

• Please don’t select any mode in “Setting”>” RGB Scheduling”, If you select one of the modes, it will cause the issue that the light becomes red once you choose a green color or become green once you choose red.
• In order to solve this issue, we suggest you select “GRB” in the “RGB Scheduling” and set the Pixel as 36, which will help the halo light work the way around（If the Pixel is <36, it will cause the issue that the halo just work on a small piece like the figure above）
• Please follow the steps to fix the issue mentioned above : Step1: Slide the RGB Scheduling and choose “GRB”, Click the Pixel as the figure shows: Step2: Enter number “36” and click “Confirm”.

Fitment:

• 2007-2018 Jeep Wrangler JK JKU
• 1997-2016 Jeep Wrangler TJ
• 2004~2006 Jeep Wrangler LJ Unlimited
• 2014~2015 Willys Wheeler Sport Utility 2-Door & 4-Door
• 1944~1958 Jeep Willys
• 1959~1986 Jeep CJ
• 1974~1978 Jeep Cherokee
• 1963~1978 Jeep Wagoneer
• 1959~1964 Jeep Utility
• 1961~1969 Jeep Universal
• 1981~1985 Jeep Scrambler
• 1963~1972 Jeep M151
• 1963~1978 Jeep J-Series
• 1968~1973 Jeep Jeepster
• 1959~1983 Jeep DJ
• 1956~1966 Jeep FC150
• 1964~1969 Jeep Gladiator
• 1966~1973 Jeep Commando
• 1992~2001 AM General Hummer
• 1992~2006 HummerH1
• 2003~2009 HummerH2
• Land Rover Defender 90&110
• Mercedes Benz G

Note:

• Please order Headlight bracket if your Jeep model is 2018-later Jeep Wrangler JL & Jeep Gladiator JT – – ->  SP-JK305.

Package includes:

• One Pair of 7inch 3D RGB Halo LED Headlights with Amber Turn Signal
• One Pair of H4 to H13 Adapter
• 1x Bluetooth Controller with Wire Harness
• 1x Installation Manual
