Six-Channel Wireless Accessory Trigger System

Description

.oracle-pdp-standard { font-size: 16px; line-height: 1.6; color: #111;}.oracle-pdp-standard .product-hero-gradient { background: linear-gradient(135deg, #1a1a1a 0%, #2d2d2d 100%); border-radius: 14px; padding: 24px 20px 20px; margin-bottom: 20px; box-shadow: 0 4px 18px rgba(0,0,0,0.18); color: #fff;}.oracle-pdp-standard .subheadline { font-size: 17px; line-height: 1.5; margin: 0 0 16px; opacity: 0.93;}.oracle-pdp-standard .highlight-pills { display: flex; flex-wrap: wrap; gap: 8px; margin-bottom: 16px;}.oracle-pdp-standard .highlight-pill { border: 1px solid #f7021f; border-radius: 999px; padding: 5px 12px; font-size: 13px; color: #fff; background: transparent; transition: background 0.18s; cursor: default;}.oracle-pdp-standard .highlight-pill:hover { background: #f7021f; }.oracle-pdp-standard .partline { font-size: 13px; opacity: 0.75; margin: 0; letter-spacing: 0.02em;}.oracle-pdp-standard .partline strong { color: #f7021f; }.oracle-pdp-standard .details-section { border: 1px solid rgba(0,0,0,0.12); border-radius: 12px; background: #fff; overflow: hidden; margin-top: 12px;}.oracle-pdp-standard .details-header { cursor: pointer; display: flex; align-items: center; justify-content: space-between; padding: 13px 16px; list-style: none; transition: background 0.15s;}.oracle-pdp-standard .details-header:hover { background: #f7021f; color: #fff; }.oracle-pdp-standard .details-header:hover .arrow { color: #fff; }.oracle-pdp-standard .details-header::-webkit-details-marker { display: none; }.oracle-pdp-standard .details-title { font-weight: 700; font-size: 15px; }.oracle-pdp-standard .arrow { font-size: 14px; color: #555; transition: transform 0.2s ease; display: inline-block;}.oracle-pdp-standard .details-section[open] .arrow { transform: rotate(180deg); }.oracle-pdp-standard .details-content { padding: 4px 16px 16px; }.oracle-pdp-standard .pdp-list { margin: 10px 0 0; padding-left: 18px; }.oracle-pdp-standard .pdp-list li { margin: 6px 0; }.oracle-pdp-standard .note { background: #f5f5f5; border-left: 3px solid #ccc; border-radius: 6px; padding: 10px 14px; font-size: 14px; margin-top: 12px;}.oracle-pdp-standard .note–warn { border-left-color: #f7021f; background: #fff5f5; }.oracle-pdp-standard .specrows { display: grid; grid-template-columns: 1fr 1fr; gap: 8px; margin-top: 12px;}@media (max-width: 600px) { .oracle-pdp-standard .specrows { grid-template-columns: 1fr; } }.oracle-pdp-standard .specrows > div { display: flex; justify-content: space-between; align-items: center; border: 1px solid rgba(0,0,0,0.11); border-radius: 8px; padding: 9px 12px; font-size: 14px; background: #fafafa;}.oracle-pdp-standard .specrows > div span:first-child { font-weight: 700; color: #111; }.oracle-pdp-standard .specrows > div span:last-child { color: #444; text-align: right; }.oracle-pdp-standard .trust-row { display: flex; flex-wrap: wrap; gap: 10px; margin-top: 12px; }.oracle-pdp-standard .trust-link { display: inline-flex; align-items: center; padding: 8px 14px; border: 1px solid rgba(0,0,0,0.13); border-radius: 999px; background: #fff; font-size: 14px; font-weight: 600; text-decoration: none; color: #111; transition: border-color 0.15s;}.oracle-pdp-standard .trust-link:hover { border-color: #f7021f; color: #f7021f; }.oracle-pdp-standard .icon-row { display: flex; flex-wrap: wrap; gap: 14px; align-items: center; margin-top: 14px; }.oracle-pdp-standard .icon-row img { height: auto; display: block; }.oracle-pdp-standard .video-wrap { width: 100%; aspect-ratio: 16/9; border-radius: 12px; border: 1px solid rgba(0,0,0,0.11); overflow: hidden; background: #000; margin-top: 14px;}.oracle-pdp-standard .video-wrap iframe { width: 100%; height: 100%; border: 0; display: block;} The TRIGGER 6 SHOOTER eliminates under-dash wiring runs and firewall penetrations — 6 fused circuits, wireless RF remote, Bluetooth app control, built-in battery monitor, and waterproof construction. Control up to 24 accessories across multiple TRIGGER units. 6 Fused Circuits Bluetooth App Control Wireless RF Remote Built-In Battery Monitor 12–24V Input Waterproof Case Up to 24 Accessories 3-Year Warranty TRIGGER Part # 3001

Product Overview▼

The TRIGGER 6 SHOOTER Wireless Accessory Control System substantially reduces accessory installation time by eliminating the need to run wires under the dash or through the firewall. It adds powerful functionality including RF remote control for activating accessories from outside the vehicle, dimming and flashing functions for installed lighting, and fused circuits with LED indicators that notify you of blown fuses.

The included battery-powered RF remote uses a universal mounting system for round or flat surfaces, features backlit buttons with customizable colors, and is programmable for security or use with additional remotes. Multiple TRIGGER units can be combined to control up to 24 accessories. The free TRIGGER ACS PLUS App (iOS/Android) adds Bluetooth on/off, dimming, and flashing control from your mobile device.

Key Features▼

• 6 fused output circuits — two 30A, two 10A, two 5A with o-ring sealed cover
• 100A fuse on positive input wire for whole-system protection
• Six 8-foot wire harnesses with pre-installed waterproof connectors
• Wireless backlit RF remote with rocker-style switches — usable inside or outside the vehicle
• Custom backlight colors on the RF remote
• Bluetooth app control — free TRIGGER ACS PLUS App for iOS and Android; on/off, dimming, and flashing
• Built-in Bluetooth battery monitor — see connected battery voltage in real-time in the app
• Manual buttons for individual circuit power on top of the control box
• Built-in DIN connector for use with conventional toggle switches (harness sold separately)
• High-intensity LED circuit indicators — blue for circuit on, red for blown fuse
• Low voltage cut-off — shuts down the 6 Shooter if battery voltage drops too low
• Waterproof case design — withstands temperatures from below freezing to 250°F
• 12–24V input — 3-wire connection (ground, switched positive, battery positive)
• Expandable — multiple units can be combined to control up to 24 accessories
• Switch labels included
• 3-Year warranty covering manufacturing defects

As featured in The Shop Magazine. Read the article.

Performance & Technical Specifications▼

Output Circuits6 (2x 30A, 2x 10A, 2x 5A) System Fuse100A (positive input) Input Voltage12V – 24V Wire Harnesses6x 8-ft waterproof Remote TypeWireless RF Rocker (backlit) App ControlTRIGGER ACS PLUS (iOS/Android) Battery MonitorBuilt-in Bluetooth (real-time) Low Voltage Cut-OffYes DIN ConnectorBuilt-in (toggle harness sold separately) Circuit IndicatorsLED (blue = on, red = blown fuse) WaterproofYes — to 250°F Max AccessoriesUp to 24 (multi-unit) Warranty3 Years Part Number3001

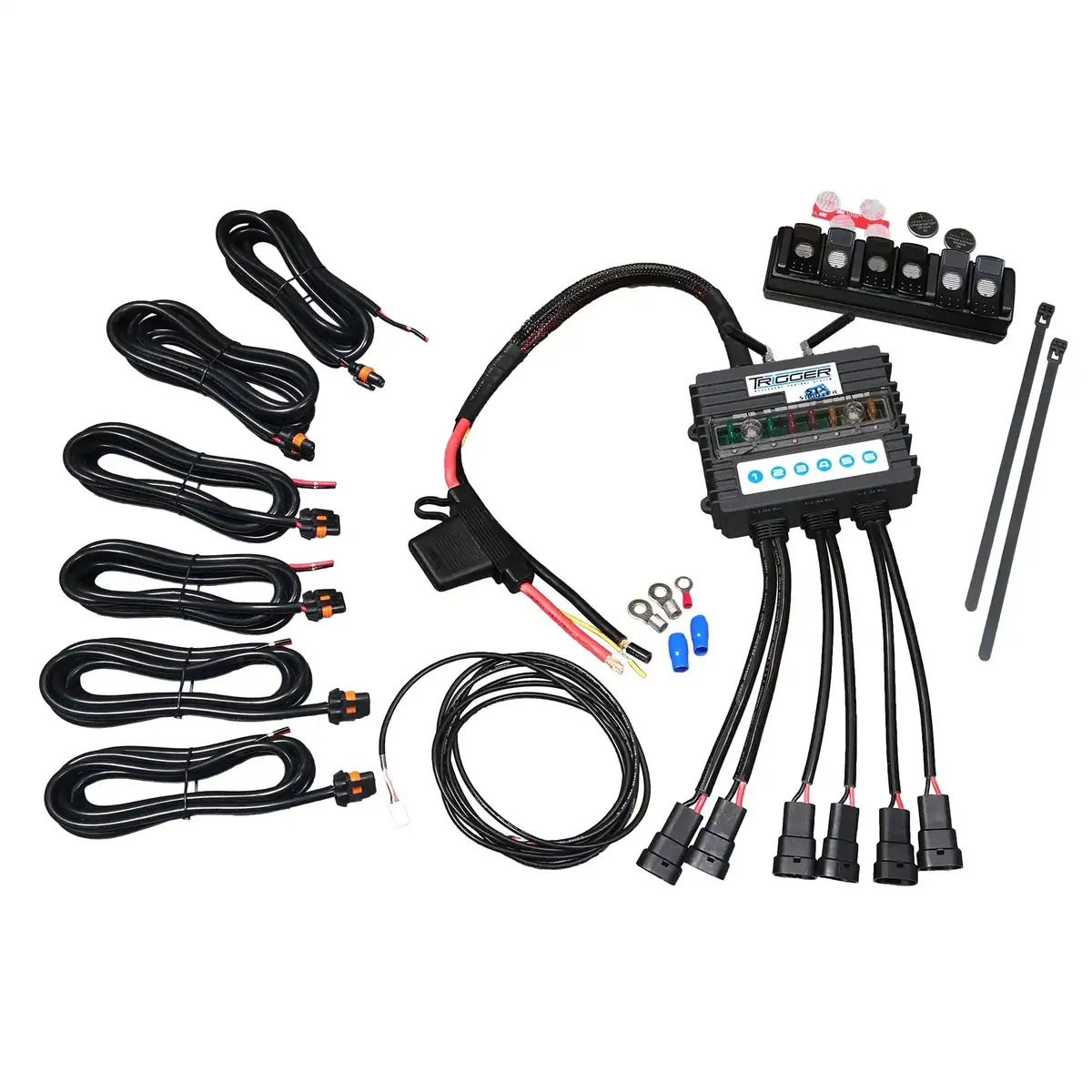

What’s Included▼

• TRIGGER 6 SHOOTER control box
• Wireless backlit RF remote with universal mount
• Six 8-foot wire harnesses with waterproof connectors
• Switch labels

Need a longer wire run? Additional TRIGGER wiring harnesses are available — shop here.

Installation Guide & Resources▼

📄 Quick Start Guide (PDF) 📄 RF Remote Wiring Diagram 📄 RF Wiring Diagram — Jeep JK The RF remote works right out of the box. Reprogramming steps can only be completed when the base is energized using the included harness.

Product Videos▼

Product Introduction

Installation Walkthrough

Warranty, Shipping & Returns▼

3-Year Warranty Shipping Returns & Exchanges ⚠️ Lithium Battery Shipping Notice: Due to Federal regulations surrounding lithium battery cells, any TRIGGER Controller products shipping by air (FedEx 2nd Day or FedEx Overnight) will have their batteries removed prior to shipment. Replacement cells: CR2032 for the 6 SHOOTER controller — readily available at most brick-and-mortar and online retailers.
