Description

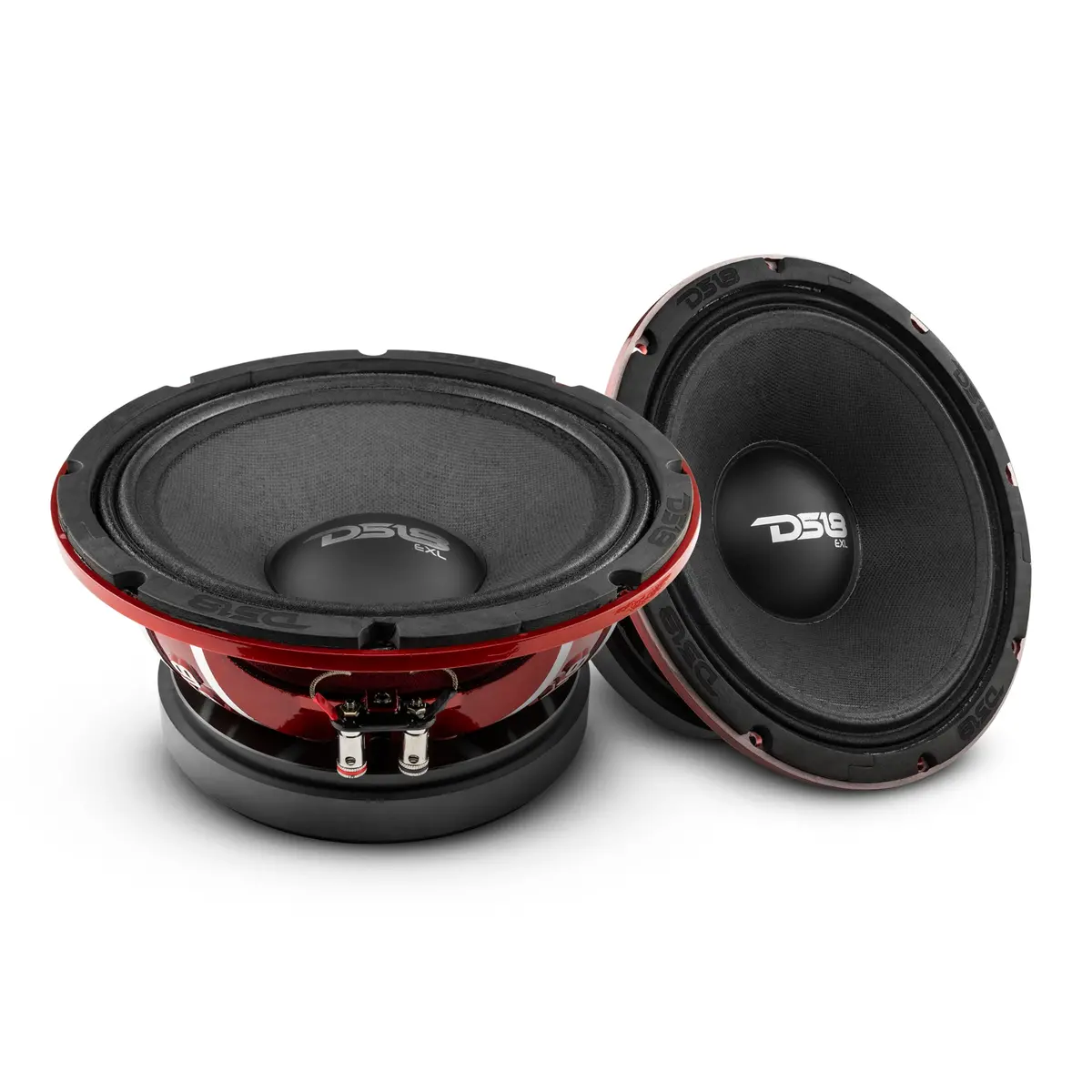

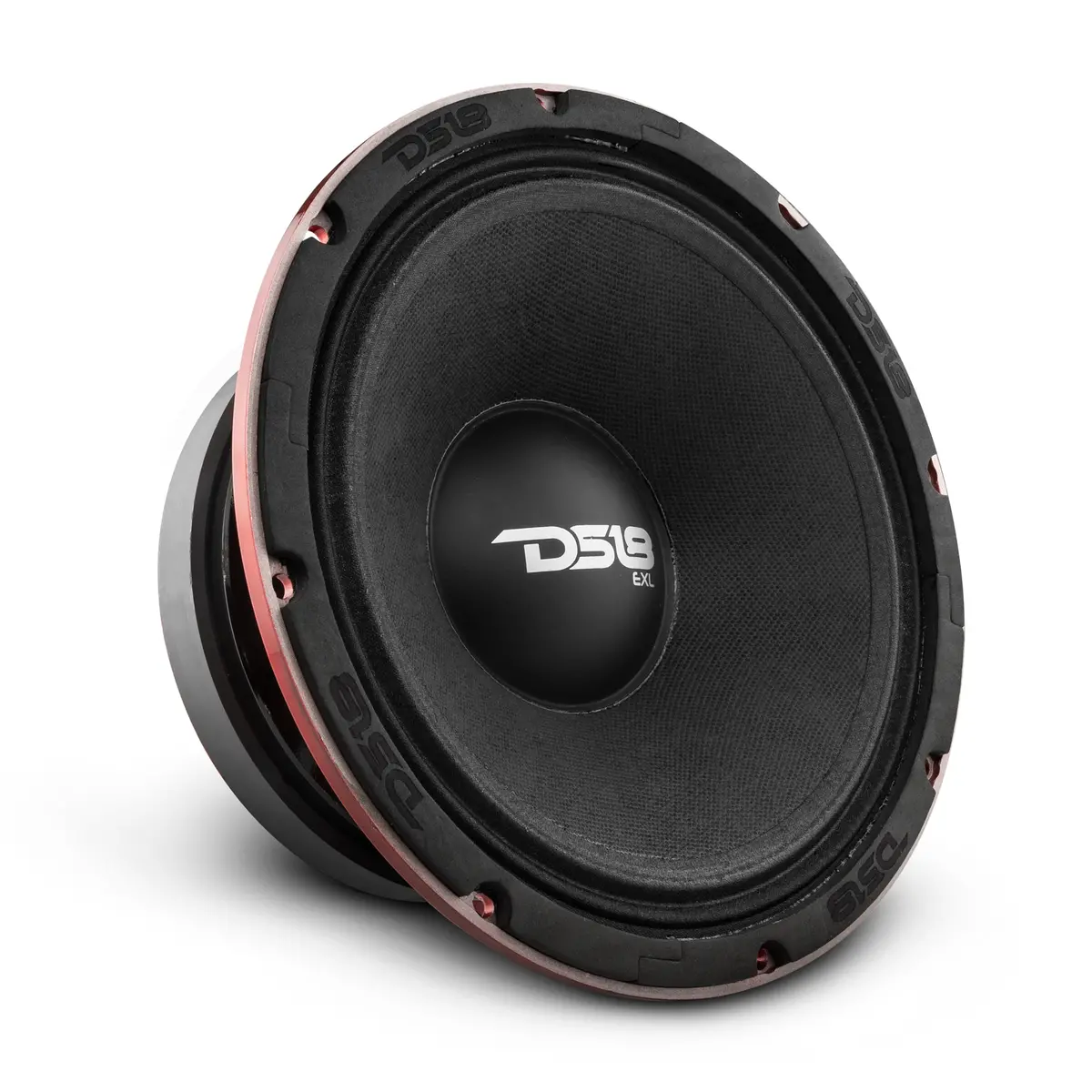

DS18 PRO-EXL104MB 10″ Mid-Bass Loudspeaker 1200 Watts 4-Ohm
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loudmid-bassseries. They are the epitome of competition-quality loudspeakers. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.
Highlights
- Flagship DS18 series producing more midrange, more mid-bass, and more vocals for the serious pro audio enthusiasts.
- Oversized DS18 tooled basket in Brilliant red and brushed aluminum logos.
- Large push style connections for large wire and maximum power flow from your amp.
Technical Details
Download PRO-EXL104MB Product Manual
| Model: | PRO-EXL104MB |
| Type: | Mid-bass Loudspeaker |
| Size: | 10″ |
| RMS Power: | 600W |
| MAX Power: | 1200W |
| Frequency Response: | 72Hz-8KHz |
| Impedance | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 3″ |
| Magnet Size: | 80 oz |
| Mounting Depth: | 4.9″ |
| Cut-Out Dimension: | 9.13″ |
| Net Weight: | 6.9 kg |
  |
