Product Overview▼

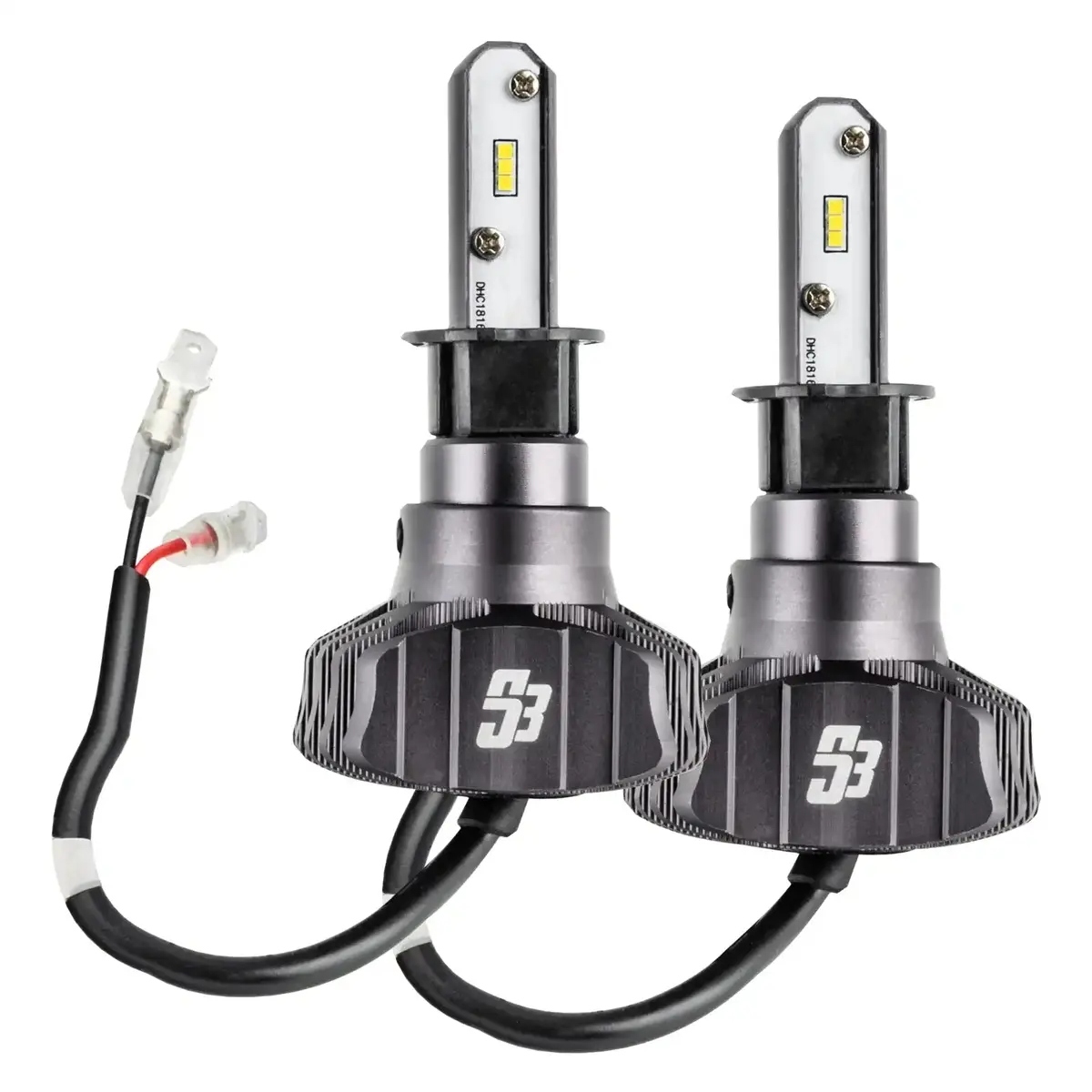

The ORACLE S3 LED Conversion Kit instantly upgrades your H1 fog lights to 3,200 lumens of crystal-clear 6000K output. The electronic components are housed in a sealed waterproof heat-sink design, eliminating the need for external drivers and cooling fans — a cleaner, more reliable solution than traditional LED conversion kits.
The CSP (Chip Scale Package) LED chip design features a small package size with high-intensity output per unit and less heat generation, resulting in industry-leading luminous efficacy of 130 lm/W. The low-profile design reduces common bulb fitment issues for an easy plug-and-play DIY installation.
⚠️ CAN Bus Note: Dodge, Chrysler, Jeep, or later-model European vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN Bus decoder harnesses if flashing, strobing, or shutting down with engine ON occurs.
Key Features▼
- 3,200 lumens — crystal-clear 6000K output, significantly brighter than halogen
- CSP (Chip Scale Package) LED chip — high intensity, low heat, small form factor
- 130 lm/W luminous efficacy — industry-leading efficiency ratio
- Sealed waterproof heat-sink design — no external drivers or cooling fans required
- Low-profile design — reduces common bulb fitment issues
- 12V/24V compatible — works with standard and heavy-duty vehicle systems
- Double-layer copper PCB — premium thermal management
- Under 1 amp current draw — minimal load on vehicle electrical system
- Plug-and-play installation — direct H1 socket replacement
- 1-Year Limited Warranty
Performance & Technical Specifications▼
Bulb SizeH1 Brightness3,200 Lumens Color Temperature6000K LED Chip TypeCSP (Chip Scale Package) Luminous Efficacy130 lm/W Power Draw12W per bulb Current Demand<1 Amp Operating Voltage12V / 24V Material6160 Aluminum PCBDouble Layer Copper WaterproofSealed Heat-Sink Design Warranty1 Year Limited Part NumberS5243-001
Fitment▼
Fits any vehicle using an H1 fog light socket. Compatible applications include (but are not limited to):
- 1997–2003 Ford F-150
- 2003–2008 Volvo XC90
- 2005–2009 Volvo S60
- 2003–2005 Infiniti G35 Coupe
- 2003–2006 Infiniti G35 Sedan
- 1996–2006 Jaguar XK8 / XKR
- 2001–2005 Mazda MX-5
CAN Bus vehicles: Dodge, Chrysler, Jeep, and later-model European vehicles (Mercedes, BMW, Audi, etc.) may require additional CAN Bus decoder harnesses if flashing, strobing, or shutting down with engine ON occurs after installation.
What’s Included▼
- (2) ORACLE S3 H1 LED Fog Light Conversion Bulbs
Installation Guide & Resources▼
📄 View Installation Instructions
Warranty, Shipping & Returns▼
1-Year Warranty Shipping Returns & Exchanges
