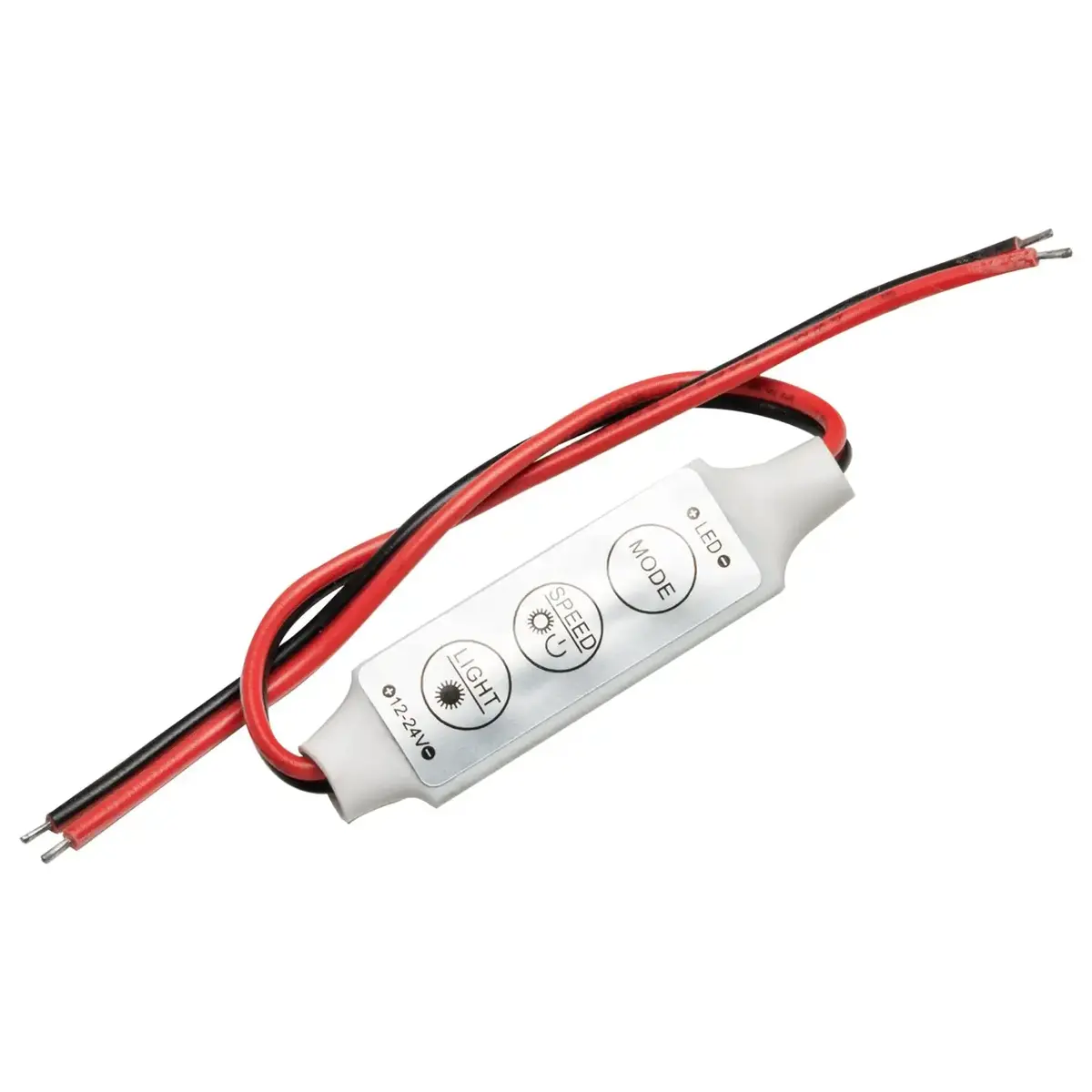

Oracle LED Inline Controller

Description

ORACLE Part # 1710-001
Easy to install LED controller from ORACLE Lighting. Called “in-line” because it directly wires up in between a power source and the LED product.

Modes include:
– Breathing Mode
– Heartbeat Mode
– Primary and Secondary Strobe Modes
– Control Dimming Mode
Product Details:
– Input: 8-16V DC
– Max load current: 12 Amps
– Output: 1 channel
– Output Power: 144 Watts
– Dynamic Modes: 5
– Levels of Control: 256
– Levels of Speed: 6
– Levels of Brightness: 8

Also included:
– Speed Variable Button
– Visible markings for the + and – 12V and LED sources.

Download Install Guide
