Description

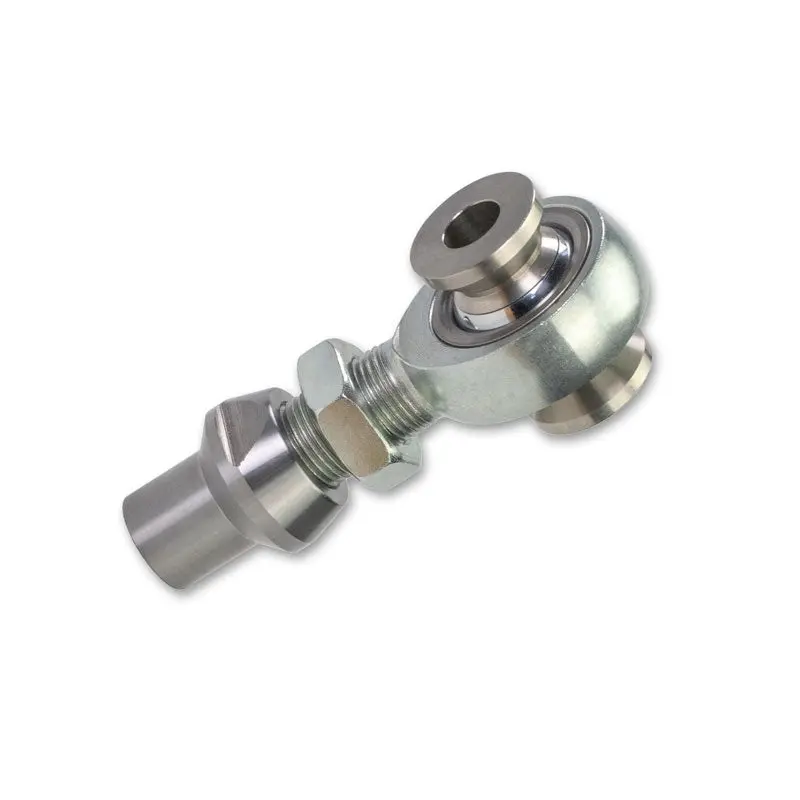

JMX PRO Rod End for the Ultimate in Strengthand Longevity.
These rod ends are the best way to add strength, reliability,and flexibility to any situation that requires use of a rod end such as insuspension or steering applications. The JMX series utilizes a highstrength Heat treated 4130 Chromoly body with a silver zinc finish with asmooth PTFE (Teflon) liner for smooth operation. The ball is made from heattreated bearing steel for strength and hard chrome polished for a smoothsurface. The race is a heat treated alloy steel which means this joint willoutlast a normal budget rod end with injection molded race. The JMX series withTeflon lining keeps the joint quiet and tight for years and years of usability.
3/4″ -16 tpi thread with 3/4″ bore.
Approximate Ultimate Radial Static Load (lbs) 28,081.
| MALE ROD END RH. |
MALE ROD END LH. |
B | D | W | T | AF | N | CF | a° | STATIC | LBS |
|---|
| JMXR12 (T) | JMXL12 (T) | 0.75 | 1.75 | 0.875 | 0.687 | 2.875 | 3/4-16 | 1.75 | 14 | 28081 | 0.6 |
