Description

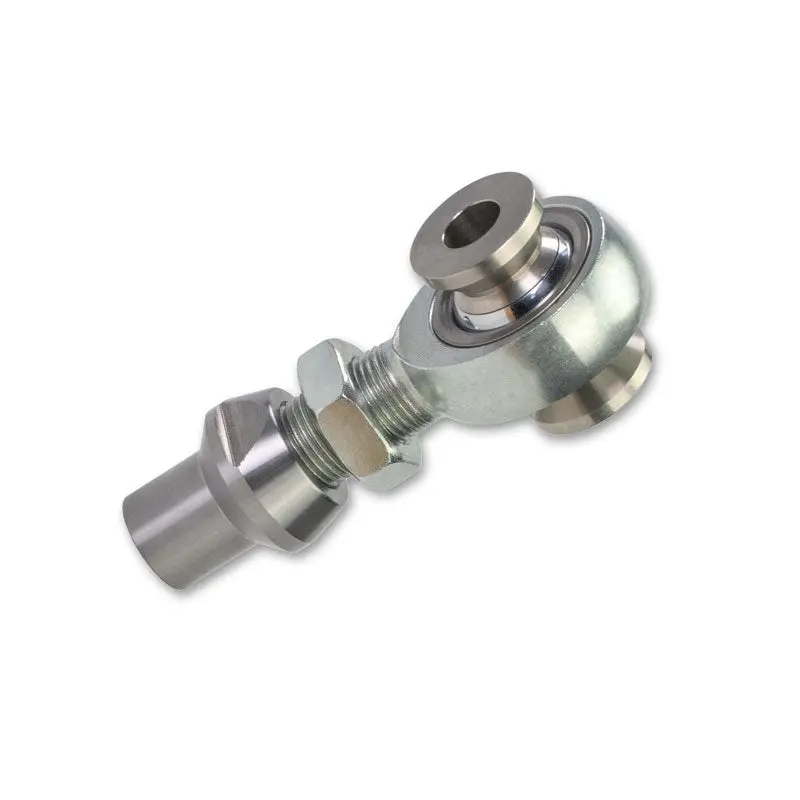

JMX PRO Rod End for the Ultimate in Strengthand Longevity.
These rod ends are the best way to add strength, reliability,and flexibility to any situation that requires use of a rod end such as insuspension or steering applications. The JMX series utilizes a highstrength Heat treated 4130 Chromoly body with a silver zinc finish with asmooth PTFE (Teflon) liner for smooth operation. The ball is made from heattreated bearing steel for strength and hard chrome polished for a smoothsurface. The race is a heat treated alloy steel which means this joint willoutlast a normal budget rod end with injection molded race. The JMX series withTeflon lining keeps the joint quiet and tight for years and years of usability.
The best use for these is when a 3/4″ bolt is needed with high misalignment spacers. 7/8″ -14 tpi thread with 7/8″ bore.
Approximate Ultimate Radial Static Load (lbs) 45,051.
|
Part Number |
System |
Thread |
A |
G |
H |
J |
M |
N |
a° |
Ultimate Radial Static Load (lbs) |
Material |
|
JMX-14 |
Inch |
7/8-14 |
0.876 |
3.375 |
2.000 |
2.000 |
0.765 |
0.875 |
14.0° |
41500 |
Chrome Moly |
