Description

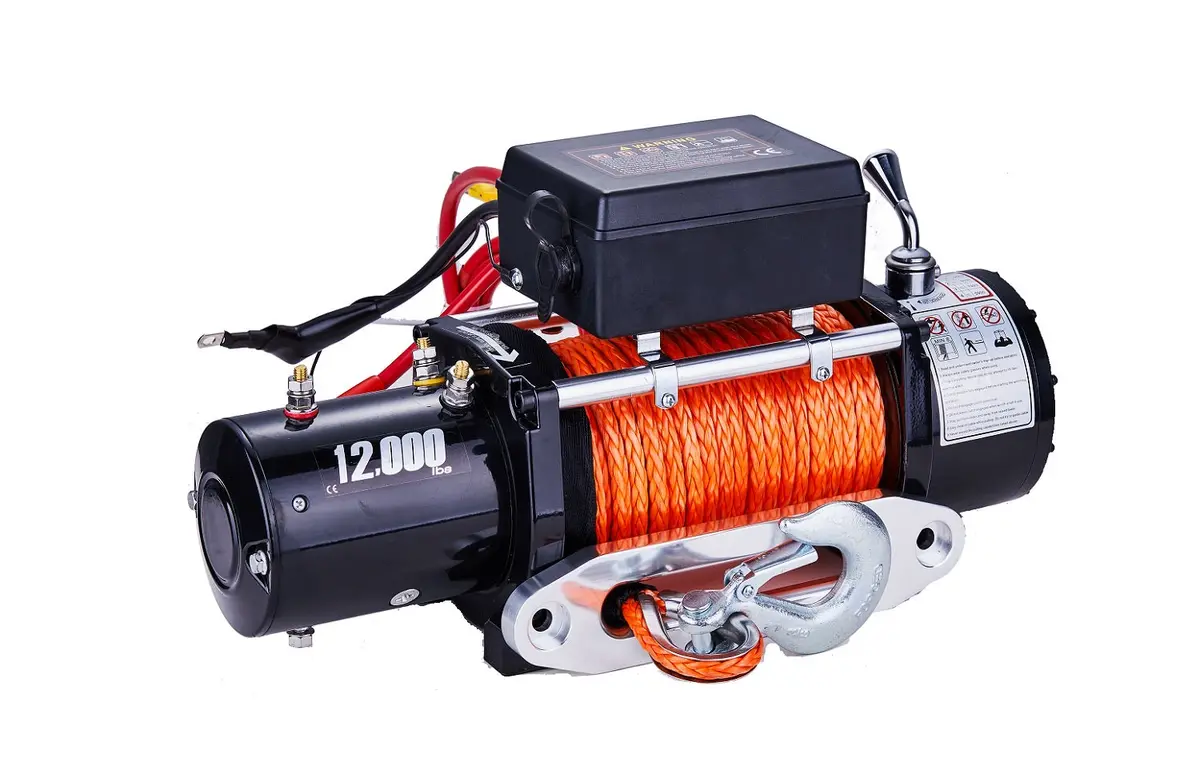

This flagship PRO 12,000 LB Winch features a synthetic line, wireless remote, a cover and more. Housing an incredibly capable and reliable motor, this winch is sure to easily get you out of any tricky off-roading situation. Backed by Gladiator Gear’s 5 Year Warranty.
Features
1. Powerful – 12,000 lb. Max rated line pull and 4-Way roller fairlead to guide the rope onto the drum evenly
3. 12 Volt powered for convenient use without extension cords or small gas engines.
4. All metal gearing for durable dependability, durable, rmooth, and reliable 3-Stage Planetary Geartrain.
5. Lightning-fast line speeds, sensitivity of remote control. Waterproof & Anti-Sediment. Exclusive brake design for superior winching control
6. Portable – with built-in carrying handle and quick-atttach mounting plate.
7. Easy installation & unrivaled durability
Technical Details
| Rated Line Pull | 12,000 lbs (5443 kgs) Single Line |
| Motor | 6.0HP / 4.5KW Series Wound |
| Gear Reduction Ratio | 265 : 1 |
| Gear Train | 3-Stage Planetary |
| Rope | 7/16″ × 79′ synthetic (11mm × 24m) |
| Drum Size (Dia.× L) | Diameter 2-33/64″(64mm) × Length 8-25/32″(223mm) |
| Remote Control Cable | 3 m |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Fairlead | 4-way Roller Fairlead |
| Battery Leads | 1.8m |
| Overall Dimensions (L × W × H) | 22-1/2 × 9-27/32 × 13-3/8″ ( 570 × 250 × 340mm) |
| Wireless Remote Control | Yes |
| Net Weight | 77 lb (35kg) |
| Pull, Speed, Amperes, Volts (First layer) | ||
| Line Pull Lbs (kgs) | Line speed FPM (m/min) | Current (A) |
| 0 | 22.0 (6.8) | 80 |
| 4,000 (1814) | 11.5 (3.5) | 170 |
| 6,000 (2722) | 9.8 (3.0) | 210 |
| 8,000 (3629) | 8.2 (2.5) | 250 |
| 1,0000 (4536) | 6.8 (2.1) | 300 |
| 1,2000 (5443) | 5.6 (1.7) | 360 |
| Line Pull and Rope Capacity in Layer | ||
| Layer of cable | Rated Line Pull Lbs (kgs) | Total Rope On Drum Ft (m) |
| 1 | 12,000 (5,440) | 17.6 (5.4) |
| 2 | 9,530 (4,322) | 37.0 (11.4) |
| 3 | 7,920 (3,590) | 63.0 (19.4) |
| 4 | 6,770 (3,075) | 88.0 (24.0) |
