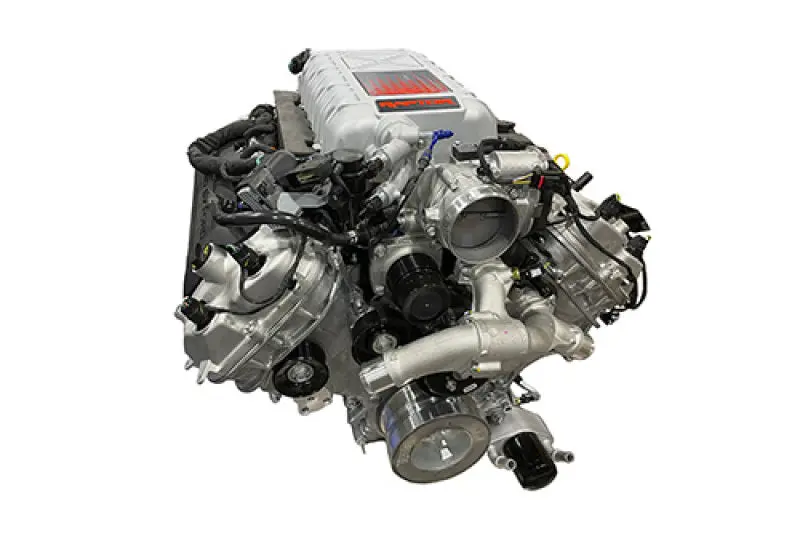

Ford Raptor R 5.2L Supercharged V8 Engine

Description

Ford Performance all-new 5.2L Supercharged intercooled engine from the 2024 F-150 Raptor R rated at 760 HP and 625 lb.-ft of torque with the M-6017-M52SC control pack.(premium fuel required).Features: Eaton TVS R2650 Supercharger. High strength aluminum block with plasma transferred wire arc spray weld cylinder liners.94mm bore.93mm stroke.9.5 to 1 compression. Forged steel crankshaft and connecting rods.Grafal coated forged aluminum pistons Includes the following all-new OE components: Exhaust manifolds (left and right).Alternator. Starter.A/C compressor.92mm throttle body. Supercharger belt. Water pump/alternator belt. To utilize the Ford Performance control pack M-6017-M52SC (available separately), you must install the KU5Z-12A581-W engine harness or repin the included engine harness. Contact the Ford Performance Techline for details. Dry weight w/o FEAD components:536 lbs..
