Description

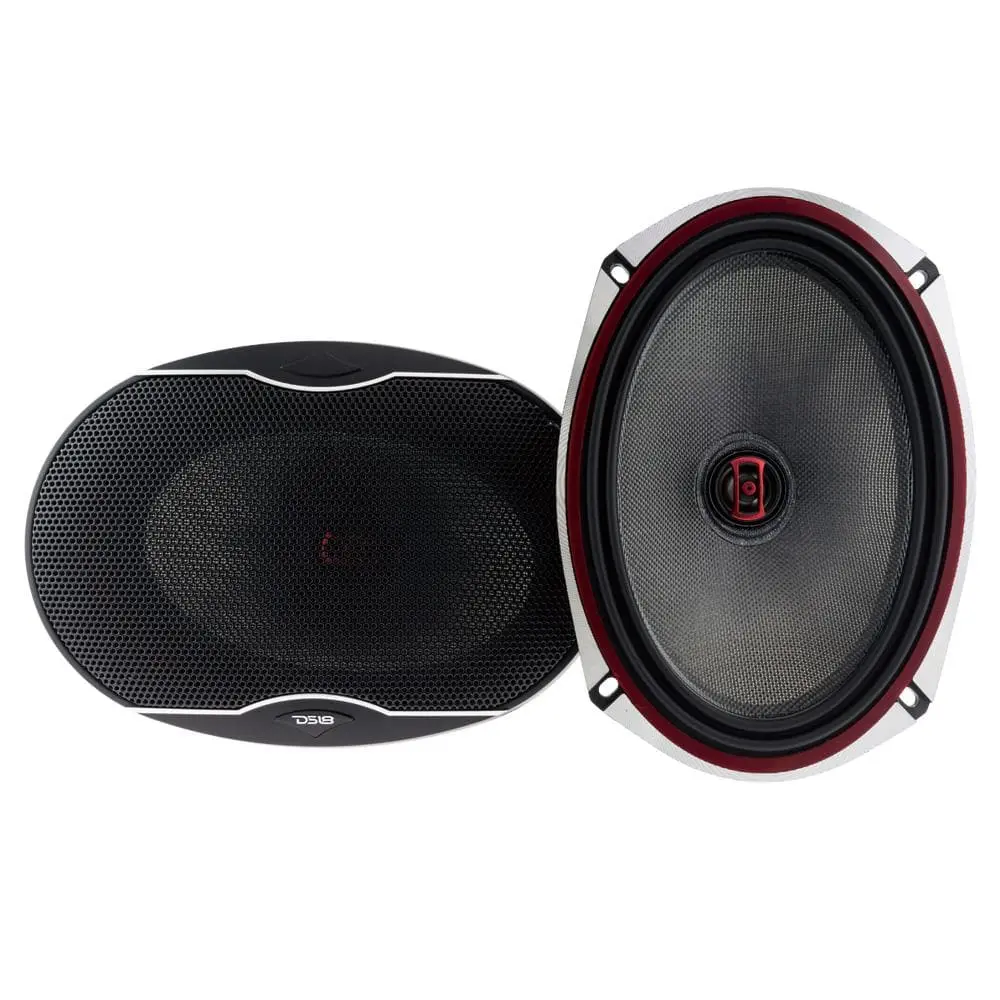

DS18 EXL-SQ6.9 Glass Fiber 6×9″ 2-Way Coaxial Car Speaker 560 Watts 3-Ohm
|
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, 1″ BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights
|
Technical Details
Download EXL-SQ6.9 Product Manual
| Model: | EXL-SQ6.9 |
| Type: | Coaxial |
| Size: | 6×9″ |
| RMS Power: | 160W |
| MAX Power: | 560W |
| Frequency Response: | 55Hz – 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 90dB |
| Materials | |
| Surround: | Rubber Edge |
| Cone: | Black Glass Fiber |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Measurements | |
| Voice Coil Size: | 1.3″ / 33 mm |
| Woofer Magnet: | Stronium |
| Magnet Weight: | 20 oz |
| Tweeter Voice Coil: | .08″ / 20.3 mm |
| Tweeter: | 1.14″ / 29 mm |
| Tweeter Magnet: | Neodymium |
| Mounting Cutout: | 5.9″x8.6″ / 150×220 mm |
| Mounting Depth: | 3.22″ / 82 mm |
| Grills: | Yes |
