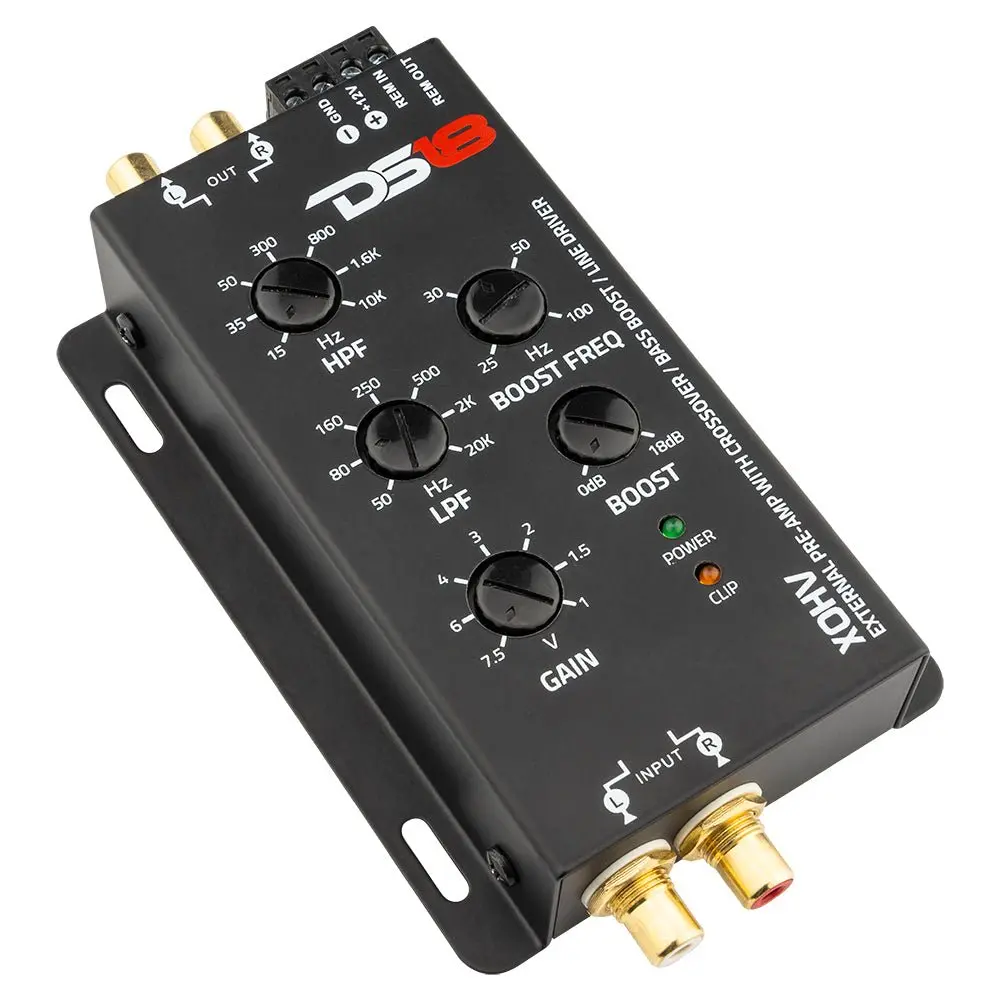

DS18 XOHV High-Voltage Preamp Featuring Fully Adjustable Crossover Network

Description

DS18 XOHV Pre-Amp With Crossover For High Volt Amplifier

Increase your systems signal to line-level with DS18’s XOHV!

This 2-channel Pre-Amplifier has a built-in Crossover and selectable bass boost frequency with high volt input and output! The XOHV is designed to work in line with H-V amplifiers that usually don’t have these features equipped.

This Pre-Amplifier’s 2-Channel capabilities allow you to connect 2 or more amplifiers for insane results!

Increase your signal strength today with the XOHV!

Highlights

• Perfect for Hi-Volts Amplifiers
• Hi-Volt RCA Input and output up to 9 volts
• Bass Boost adjustable on frequency and intensity
• LED Clip indicator for input and output
• Input Gain Adjustable
• Low Loss Tiffany RCA
• Remote output with delay to avoid noises
• Input Ground Selectable (Ground/200 ohm/Insulated)

Great For

• Pro Audio
• Car Audio

Technical Details

            Download XOHV Product Manual

SPECIFICATIONS
Audio
Frequency Response	15Hz – 20KHz
Signal to Noise Ratio	100dB
Total Harmonic Distortion (THD)	0.0002
Stereo Signal Separation	85dB
Low Level Input Range	1.6 – 9 Volts
High Pass Filter Range	15Hz – 10KHz
Low Pass Filter Range	50Hz – 20KHz
Crossover Slope	12dB/Oct
Bass Boost Range	0~18dB
Bass Boost Frequency	35~125Hz
RCA Pre-Output Voltage at 12.8V	7 Volts
RCA Pre-Output Voltage at 14.4V	9 Volts
Features
Number of Channels	2 (Left and Right)
Led Indicator	Power / Clip
Power Input Terminal Size	14ga
Fuse Size	up to 1A (external)
Remote Output	Yes, (250mA)
Tiffany RCA	Yes, (Input and Output)
Input Ground Selector	Yes, (Ground/200ohm/Insolated)
Measurement
Overall Length	5.9″ / 150mm
Overall Wide	3.28″ / 83.5mm
Overall Height	1.1″ / 28mm
Heatsink Length	4.86″ / 123.5mm
Heatsink Wide	2.42″ / 61.7mm
Gross Single Unit Weight	9.4oz
