AW4 Transfer Case Timing Alignment Tool

Description

AW4 Clocking Ring Jig

—

Next Venture AW4/AX15 Jeep Clocking Ring Jig for Jeep Transfercase/Transmission Mating

• Allows for proper clocking of your transfercase when swapping XJ or TJ transmissions between platforms. This allows for proper clearance to the body/floor and skid plates given the 10 degree clocking difference between these 2 popular Jeep platforms.

• OEM Mounting Holes are provided to bolt this jig into place using the existing mounting points on the aft of the transmission; mark and drill your pilot holes with this jig bolted in place!

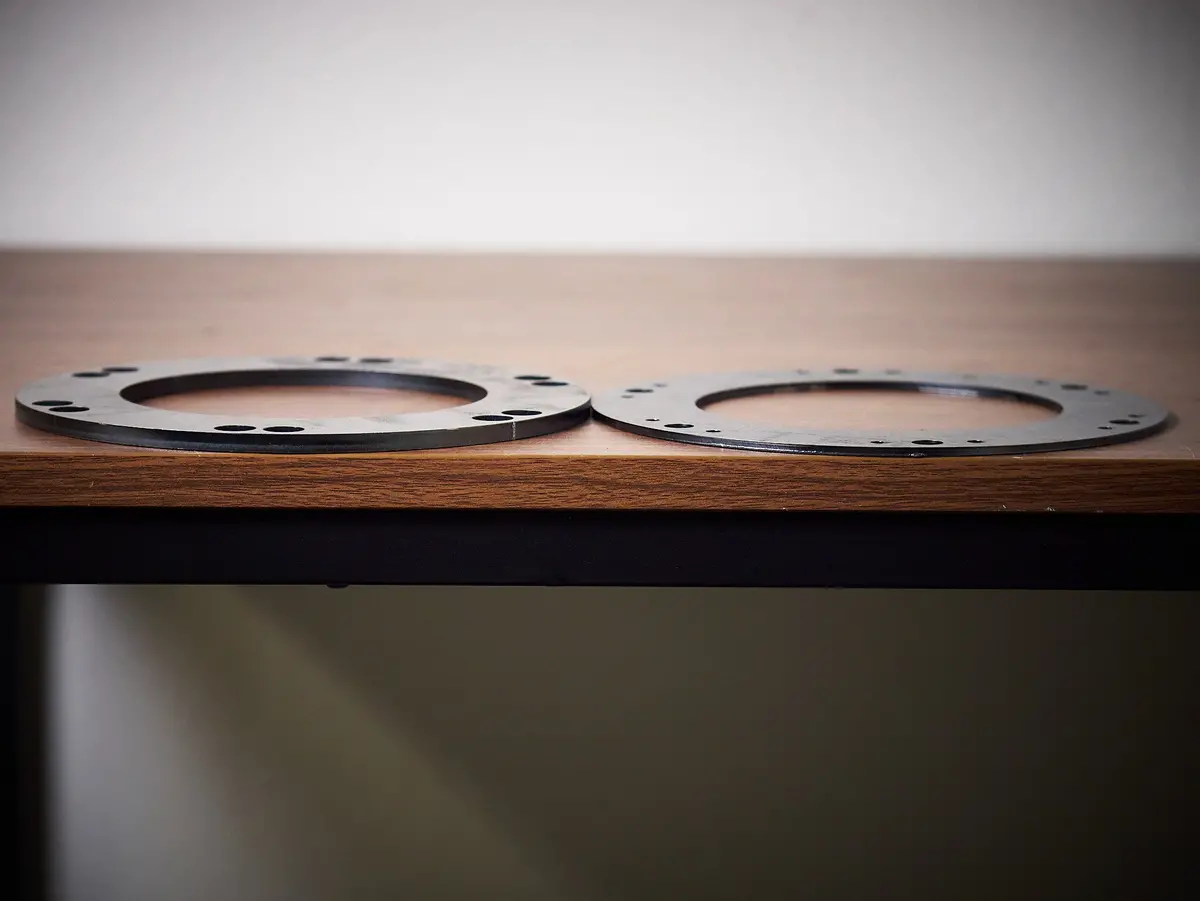

• Sold as a pair, one 1/8″ jig and one 1/4″ jig; only 1 set required.

Whether you’re swapping in an AW4 into your TJ/LJ/YJ or building a flat skid plate for your AW4/AX15 equipped XJ, this is the solution!
