Description

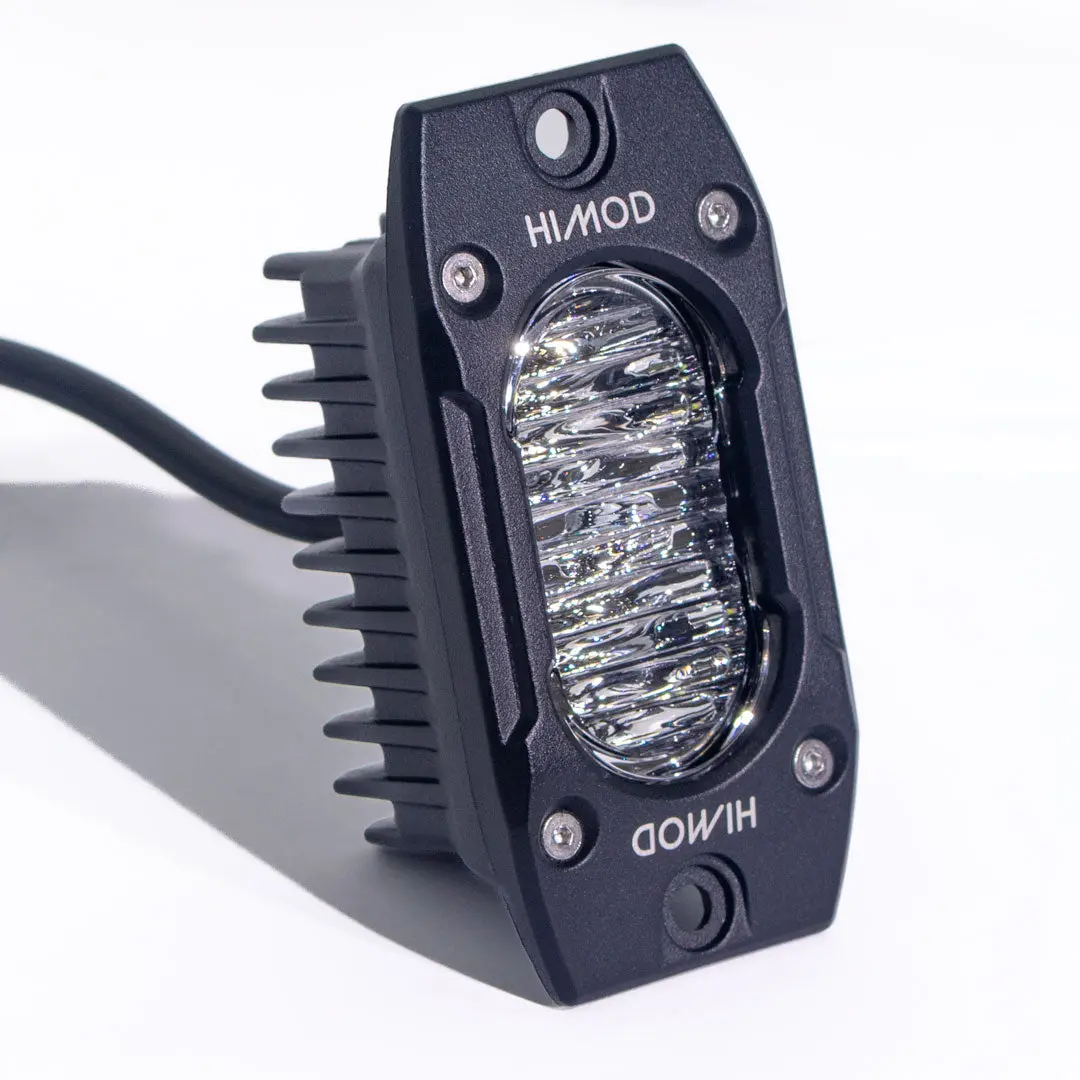

The HIMOD Led Reverse Flush Mount | 20w Single White | Amber delivers serious illumination where it matters: backing up at night, launching boats in the dark, or navigating tight reversing situations. Built without compromise and designed with real-world versatility in mind.
The difference? You choose how it performs.
Hot-Swappable Lens System: Clear or Amber in Minutes
Switch between clear ( included ) and amber lens ( included ) covers in under 5 minutes with a single tool. No other flush mount on the market gives you this level of adaptability. More lens options coming soon.
The clear lens delivers the full 2,000 lumens of crisp white light for maximum visibility in reversing situations, while the amber lens provides superior dust and fog penetration while maintaining high output. Swapping between covers takes under 5 minutes with a single tool, and both lenses are included standard with every unit.
Dual-Beam Output: Long Range + Wide Coverage
Combines long-range projection with short-range flood for complete reversing visibility. See the hitch at distance while monitoring your full surroundings. No blind spots. No compromises.
2,000 Lumens: Real-World Brightness
Clean, functional light that cuts through darkness, dust, and bad weather without blinding you in your mirrors. 20W per light with efficient heat-sink design for continuous operation. Video taken on phone camera.
Flush-Mount Design: Professional Finish
Sits cleanly within your rear bar, tray, canopy, or bumper with a low-profile installation that looks factory. No protruding housings. No awkward mounting brackets.
Wiring Options: Choose Your Installation Style
Each HIMOD Reverse Flush Mount includes a female DT plug with a red/black spliced wire pigtail, giving you flexibility in how you wire it up.
Option 1: DIY Wiring (Included)
Splice the red/black wires directly into your existing tail light wiring. Red connects to your reverse light positive, black to ground. Simple, permanent, and requires basic wiring knowledge.
Option 2: Plug & Play Wiring Loom (Sold Separately) Click Here
For those wanting a cleaner, faster install with added control, our Plug & Play Wiring Loom eliminates splicing entirely. It includes an in-cab switch so you can activate your reverse lights independently of being in reverse gear. Perfect for camp lighting, work illumination, or when you need extra visibility without the reversing beeper going off.
The wiring loom is available as a separate product and takes the guesswork out of installation. Link
IP67 Waterproof & Dustproof: Built for Australia
Fully sealed against dust and high-pressure washing. Take it through river crossings, pressure wash after muddy trips, or expose it to coastal salt spray: it’s engineered for genuine off-road and tradie use.
Protection:
- IP67 rated (dustproof and waterproof)
- Shock-resistant housing
- UV-resistant materials
- Operating range: -40°C to 60°C
- 50,000-hour LED lifespan
Perfect for Night Launching, Off-Roading & Towing
Designed for scenarios where inadequate lighting creates genuine safety risks:
- Boat launching: See the full ramp width, waterline, and trailer position
- Off-road reversing: Navigate tight tracks and rocky terrain with confidence
- Towing at night: Clearly see hitches, loads, and obstacles when backing up
- Work sites: Tradesmen backing up in low-light conditions
Technical Specifications:
| Specification | Details |
|---|---|
| Lumens | 2,000 per unit (4,000 as a pair) |
| Power Draw | 20W per light |
| Current Draw | 1.34A @ 12.8V |
| Voltage | 12V – 24V compatible |
| Beam Pattern | Dual-beam (long-range + flood) |
| Lens Options | Clear + Amber (both included) |
| Protection | IP67 waterproof & dustproof |
| Operating Temp | -40°C to 60°C |
| Warranty | 24 months coverage |
| LED Lifespan | 50,000 hours |
What’s Included (Per Unit)
Note: Each unit is sold individually. Purchase 2 units for a complete pair.
- 1 x Flush mount LED light with clear flood lens (installed)
- 1 x Amber hot-swappable lens cover
- 1 x Female DT plug with male red/black wire pigtail
- Stainless steel mounting bolts and hardware
- Installation cut guide
- Rubber cutout gasket
- Full installation instructions
Optional Add-On: Plug & Play Wiring Loom (sold separately)
Why HIMOD Built This Differently
We don’t chase trends or inflate specs. We build products for how they’ll actually be used: in dust, mud, salt spray, sub-zero mornings, and 40°C summer heat.
The Reverse Flush Mount exists because we saw a gap: flush mounts that either lacked power, offered no versatility, or failed within months. We engineered a solution that addresses all three problems.
Hot-swappable lenses mean you’re not stuck with one beam colour forever
Dual-beam optics provide the range and coverage that reversing actually needs
IP67-rated construction survives the Australian environment
2,000 lumens delivers usable brightness without overkill
This is a flush mount designed by people who understand what real-world lighting needs to do.
Installation Note:
Designed for custom installation into rear bars, trays, canopies, or bumpers. Precision cut guide included for accurate hole placement and a professional finish.
For curved surfaces, foam spacers or backing plates may be required. CAD files are available upon request for fabricators requiring exact dimensions.
