Description

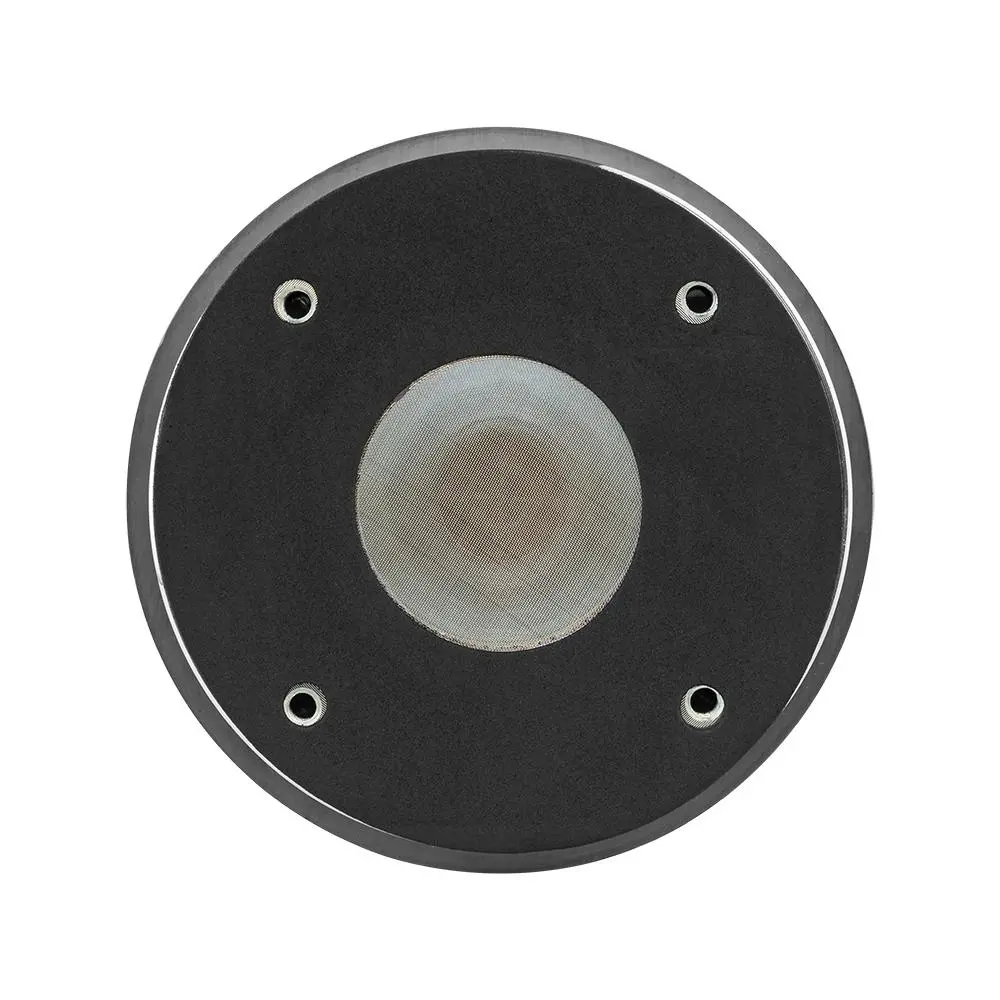

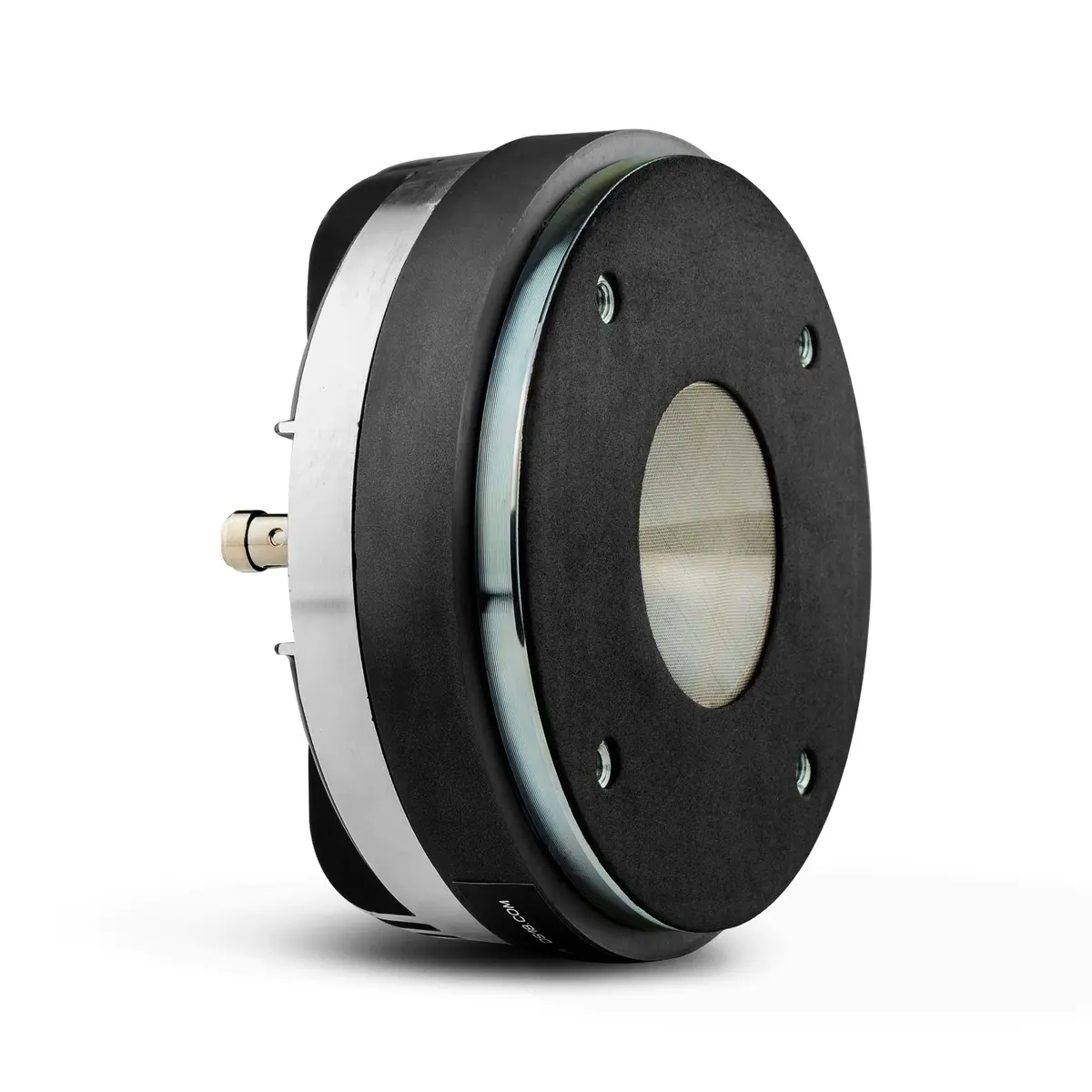

DS18 PRO-D1F 2″ Throat Bolt On Compression Driver 2″ Throat Phenolic VC 450 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies. This ferrite driver is compatible with 4 bolt horns (throat) of all sizes. This will be an amazing addition to any system that needs super loud highs.
This driver comes with a massive 2 inch phenolic voice coil that takes 150 Watts RMS and 450 Watts Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 150 Watts RMS and 450 Watts peak.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
Download PRO-D1F Product Manual
| Nominal Impedance | 8 Ohms |
| Throat Diameter | 2″ |
| RMS Power Handling | 150 Watts |
| MAX Power handling | 450 Watts |
| Sensitivity (1w/1m) | 110dB |
| frequency response | 500Hz-18KHz |
| Recommended Hi Pass Crossover | 800Hz |
| Voice Coil Diameter | 2.03″ |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Wight | 35oz |
| Bolt Type | Bolt-on |
| Measurements | |
| Overall Diameter | 5.27″ |
| Overall Depth | 2.4″ |
